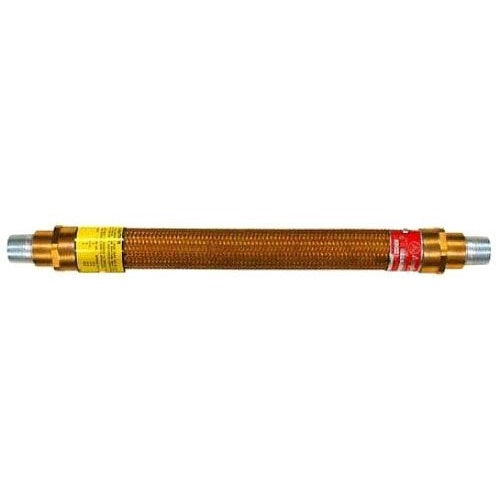

Appleton EXGJH-633-SS 2X33 Flex Coupling

Overview

Appleton EXGJH-633-SS 2X33 Flex Coupling

Product Specifications

• UPC: 78138179286
• Enclosure: CLASS I DIV 1 AND 2 GROUP D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III
• Additional Information: WITH INSULATING LINER
• Catalog Number: EXGJH-633-SS
• Brand Name: UNILETS.
• Model: EXGJH
• Trade Size: 2 INCH
• Fitting Material: NATURAL FINISHED STAINLESS STEEL
• Material: BRONZE BRAID, BRASS CORE
• End Type: (2) MALE NIPPLE
• Length: 33 INCH
• Catalog Description: FLEXIBLE CONDUIT COUPLING, TRADE SIZE 2 IN, FITTING MATERIAL NATURAL FINISHED STAINLESS STEEL, MATERIAL NATURAL FINISHED STAINLESS STEEL BRAID/CORE, END TYPE (2) MALE NIPPLE, FLEX LENGTH 33 IN, ENCLOSURE CLASS I GROUP D, CLASS II GROUP E F G, CLASS III, APPROVAL UL 886, CSA C22.2, INCLUDES INSULATING LINER, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, WATERTIGHT, USED ON RIGID METAL CONDUIT AND IMC
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Stainless Steel Material; 33 Inch; UL 886/1203, CSA C22.2 Approval; IP66 Enclosure; 2 Inch Trade Size; (2) Female End Type; Brass (End), Ductile Iron (Union), Zinc Plated Steel (Nipple) Fitting Material; UNILETS[R] Brand; Type Heavy Duty; Constructional Feature Explosionproof/Dust Ignitionproof, Water Tight; Bending Radius 18 Inch; Ambient Temperature Rating -40 to 302 Deg F; Finish Natural; Used on Threaded Rigid Metal Conduit and IMC; Includes (2) Removal Male Nipple; Application Hazardous/Wet Location; Applicable Standard ATEX; EXGJH Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Flexible Conduit Coupling
• Unspsc: 39131707
• UPC 12 Digit: 781381792868
• SKU Name: app exgjh633ss

Resources

• Manufacturer Spec Sheet
