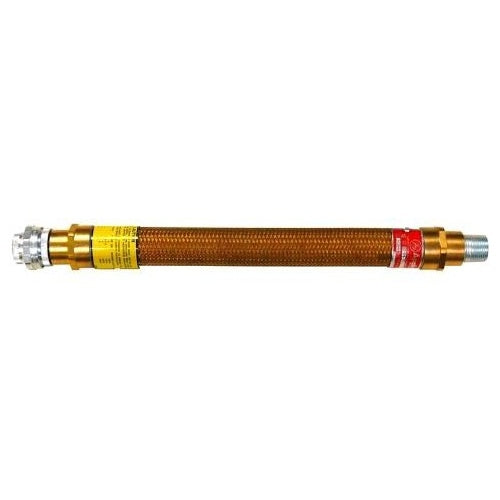

Appleton EXLK-336 1X36 Flex Coupling

Overview

Appleton EXLK-336 1X36 Flex Coupling

Product Specifications

• UPC: 78138132890
• Enclosure: Class I Group C D, Class II Group E F G, Class III
• Approval: UL 886, CSA C22.2
• Additional Information: Includes Insulating Liner; Used On Rigid Metal Conduit and IMC
• Catalog Number: EXLK-336
• Brand Name: Unilet[R]
• Model: EXLK
• Trade Size: 1 Inch
• Fitting Material: Brass End, Zinc Plated Steel Union
• Material: Bronze Braid, Brass Core
• End Type: (1) Male Nipple, (1) Union
• Length: 36 Inch
• Catalog Description: UNILETS FLEXIBLE COUPLING, TRADE SIZE: 1 IN, OUTSIDE DIAMETER: 2.06 IN, BENDING RADIUS: 14 IN, FLEXIBILITY: RIGID AND IMC, MATERIAL: OUTER BRONZE BRAID AND INNER BRASS CORE WITH INSULATING LINER, END TYPE (1) MALE NIPPLE, (1) UNION, FINISH: NATURAL, STANDARD: UL 886 (1203), UL FILE NUMBER E10444, CSA C22.2 NO. 25, C22.2 NO. 30, CSA 065181 CERTIFED, CLASS I, DIVISION 1 AND 2 AND CLASS II, DIVISION 1 AND 2, SUITABLE FOR CLASS I, GROUPS C, D, CLASS II, GROUPS E, F, G, CLASS III, FOR USE WITH THREADED RIGID METAL CONDUIT AND IMC
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Bronze (Outer Braid), Brass With Insulating Liner (Inner Core) Material; 36 Inch; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class I Zone 1 and 2 Group Iia Iib, Class III Enclosure; 1 Inch Trade Size; (2) Female End Type; Brass (End), Zinc Plated Steel (Union/Nipple) Fitting Material; UNILETS[R] Brand; Type Heavy Duty; Constructional Feature Explosionproof/Dust Ignitionproof, Water Tight; Bending Radius 14 Inch; Ambient Temperature Rating -40 to 302 Deg F; Finish Natural; Used on Threaded Rigid Metal Conduit and IMC; Includes (1) Removal Male Nipple, (1) Removal Union; Application Hazardous/Wet Location; Applicable Standard Nec/Cec; EXLK Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Flexible Conduit Coupling
• Unspsc: 39131707
• UPC 12 Digit: 781381328906
• SKU Name: app exlk336

Resources

• Manufacturer Spec Sheet
