Overview

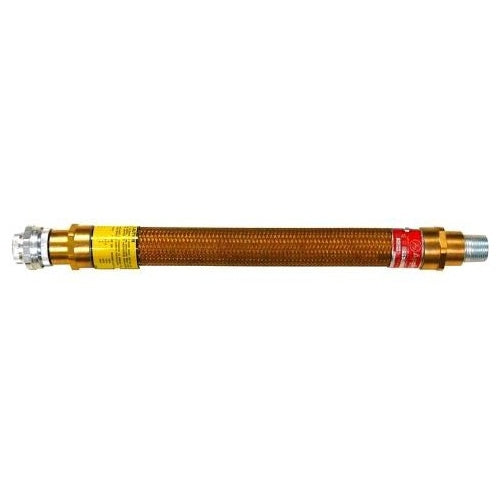

Appleton EXLK-433 1-1/4X33 Flex Coupling

Product Specifications

• UPC: 78138132930
• Enclosure: CLASS I GROUP D, CLASS II GROUP E F G, CLASS III
• Additional Information: WITH INSULATING LINER
• Catalog Number: EXLK-433
• Brand Name: UNILETS.
• Model: EXLK
• Trade Size: 1-1/4 INCH
• Fitting Material: BRASS
• Material: BRONZE BRAID, BRASS CORE
• End Type: (1) MALE NIPPLE, (1) UNION
• Length: 33 INCH
• Catalog Description: FLEXIBLE CONDUIT COUPLING, TRADE SIZE 1-1/4 IN, FITTING MATERIAL NATURAL FINISHED BRASS END, DUCTILE IRON UNION, MATERIAL NATURAL FINISHED BRONZE BRAID, NATURAL FINISHED BRASS CORE, END TYPE (1) MALE NIPPLE, (1) UNION, FLEX LENGTH 33 IN, ENCLOSURE CLASS I GROUP D, CLASS II GROUP E F G, CLASS III, APPROVAL UL 886, CSA C22.2, INCLUDES INSULATING LINER, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, WATERTIGHT, USED ON RIGID METAL CONDUIT AND IMC
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Bronze (Outer Braid), Brass With Insulating Liner (Inner Core) Material; 33 Inch; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group D, Class II Div 1 and 2 Group E F G, Class I Zone 1 and 2 Group Iia, Class III Enclosure; 1-1/4 Inch Trade Size; (2) Female End Type; Brass (End), Ductile Iron (Union), Zinc Plated Steel (Nipple) Fitting Material; UNILETS[R] Brand; Type Heavy Duty; Constructional Feature Explosionproof/Dust Ignitionproof, Water Tight; Bending Radius 16 Inch; Ambient Temperature Rating -40 to 302 Deg F; Finish Natural; Used on Threaded Rigid Metal Conduit and IMC; Includes (1) Removal Male Nipple, (1) Removal Union; Application Hazardous/Wet Location; Applicable Standard Nec/Cec; EXLK Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Flexible Conduit Coupling
• Unspsc: 39131707
• UPC 12 Digit: 781381329309
• SKU Name: app exlk433

Resources

• Manufacturer Spec Sheet
