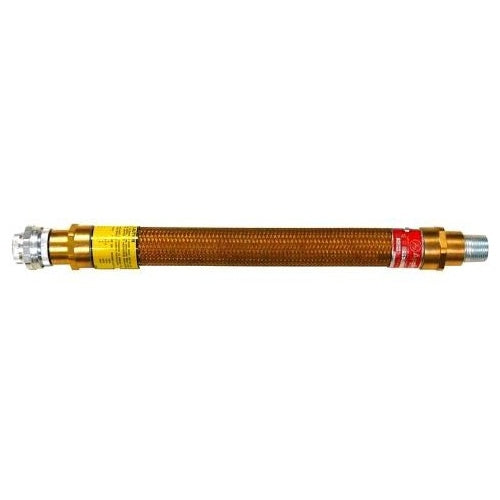

Appleton EXLK-615 2X15 Flex Coupling

Overview

Appleton EXLK-615 2X15 Flex Coupling

Product Specifications

• UPC: 78138132990
• Enclosure: CLASS I GROUP D, CLASS II GROUP E F G, CLASS III
• Additional Information: WITH INSULATING LINER
• Catalog Number: EXLK-615
• Brand Name: UNILETS.
• Model: EXLK
• Trade Size: 2 INCH
• Fitting Material: BRASS
• Material: BRONZE BRAID, BRASS CORE
• End Type: (1) MALE NIPPLE, (1) UNION
• Length: 15 INCH
• Catalog Description: FLEXIBLE CONDUIT COUPLING, TRADE SIZE 2 IN, FITTING MATERIAL NATURAL FINISHED BRASS END, DUCTILE IRON UNION, MATERIAL NATURAL FINISHED BRONZE BRAID, NATURAL FINISHED BRASS CORE, END TYPE (1) MALE NIPPLE, (1) UNION,FLEX LENGTH 15 IN, ENCLOSURE CLASS I GROUP D, CLASS II GROUP E F G, CLASS III, APPROVAL UL 886, CSA C22.2, INCLUDES INSULATING LINER, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, WATERTIGHT, USED ON RIGID METAL CONDUIT AND IMC
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Bronze (Outer Braid), Brass With Insulating Liner (Inner Core) Material; 15 Inch; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group D, Class II Div 1 and 2 Group E F G, Class I Zone 1 and 2 Group Iia, Class III Enclosure; 2 Inch Trade Size; (2) Female End Type; Brass (End), Ductile Iron (Union), Zinc Plated Steel (Nipple) Fitting Material; UNILETS[R] Brand; Type Heavy Duty; Constructional Feature Explosionproof/Dust Ignitionproof, Water Tight; Bending Radius 18 Inch; Ambient Temperature Rating -40 to 302 Deg F; Finish Natural; Used on Threaded Rigid Metal Conduit and IMC; Includes (1) Removal Male Nipple, (1) Removal Union; Application Hazardous/Wet Location; Applicable Standard Nec/Cec; EXLK Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Flexible Conduit Coupling
• Unspsc: 39131707
• UPC 12 Digit: 781381329903
• SKU Name: app exlk615

Resources

• Manufacturer Spec Sheet
