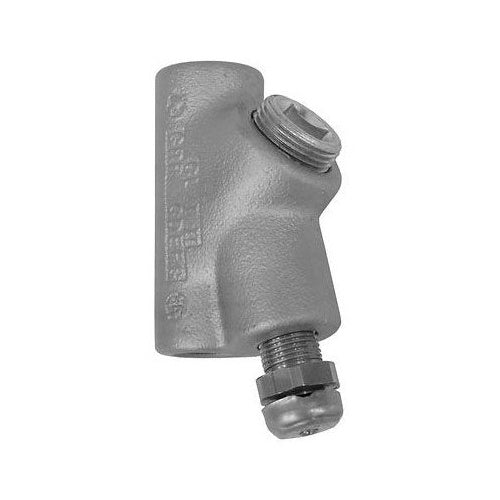

Appleton EYD26 3/4" Gray Male/Female Fitting

Product Specifications

• UPC: 78138162088
• Mounting Position: Vertical
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL 1203, CSA C22.2
• Additional Information: REMOVABLE MALE NIPPLE
• Catalog Number: EYD26
• Brand Name: Unilet[R]
• Model: EYD
• Type: Drain, Hub
• Turning Radius: 1.19 Inch
• Trade Size: 3/4 Inch
• Connection Type: Male, Female
• Material: Epoxy Powder Coated Chromate Zinc Electroplated Grayloy Iron
• Catalog Description: UNILETS EYD SERIES 25 PCT FILL VERTICAL CONDUIT DRAIN SEALING FITTING WITH REMOVABLE NIPPLE, SIZE: 3/4 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONNECTION: TAPERED MNP
• Category: Steel Sealing Bodies
• Full Technical Description: Drain Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron Material; Tapered Threaded Male/Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 3/4 Inch Trade Size; Vertical Mounting Position; 1.19 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 3.69 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYD Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381620888
• SKU Name: app eyd26
