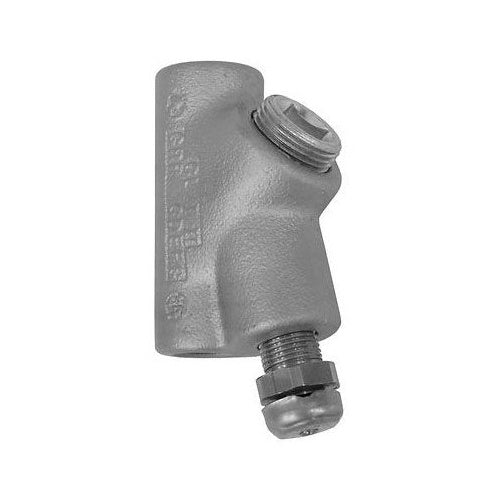

Appleton EYD86 3" Malleable Drain Seal

Product Specifications

• UPC: 78138162096
• Mounting Position: VERTICAL
• Enclosure: CLASS I GROUP C D, CLASS II GROUP E F G, CLASS III
• Approval: UL
• Additional Information: REMOVABLE MALE NIPPLE
• Catalog Number: EYD86
• Brand Name: UNILETS.
• Model: EYD
• Type: DRAIN
• Turning Radius: 3.13 INCH
• Trade Size: 3 INCH
• Connection Type: MALE, FEMALE
• Material: EPOXY POWDER COATED DICHROMATE ZINC ELECTROPLATED GRAYLOY. IRON
• Catalog Description: UNILETS EYD SERIES 25 PCT FILL VERTICAL CONDUIT DRAIN SEALING FITTING WITH REMOVABLE NIPPLE, SIZE: 3 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONNECTION: TAPERED MNPT X TAPERED FNPT, TURNING RADIUS: 3.13 IN, LENGTH: 8-1/2 IN, WIDTH: 4-1/4 IN, STANDARD: UL 886 (1203), UL FILE NUMBER E10444, CSA C22.2 NO. 30, CSA 065181, UL LISTED FOR CLASS I, DIVISION 1 AND 2 GROUPS C, D, CLASS II, DIVISION 1 AND 2 GROUPS E, F, G, CLASS III, FOR USE WITH THREADED RIGID METAL CONDUIT AND IMC
• Category: Steel Sealing Bodies
• Full Technical Description: Drain Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron Material; Tapered Threaded Male/Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 3 Inch Trade Size; Vertical Mounting Position; 3.13 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 8.5 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYD Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381620963
• SKU Name: app eyd86

Resources

• Manufacturer Spec Sheet
