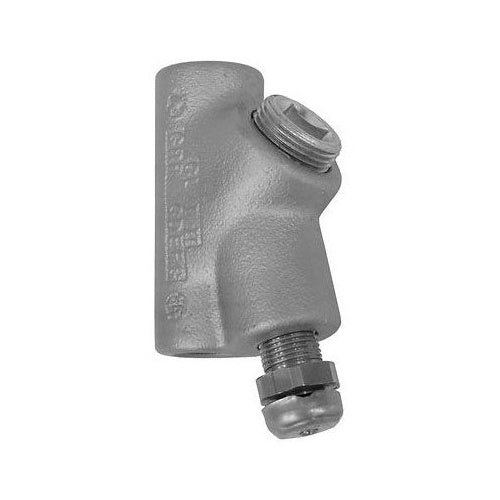

Appleton EYD96 4" Malleable Drain Seal

Overview

Appleton EYD96 4" Malleable Drain Seal

Product Specifications

• UPC: 78138162097
• Mounting Position: VERTICAL
• Enclosure: CLASS I GROUP C D, CLASS II GROUP E F G, CLASS III
• Approval: UL
• Additional Information: REMOVABLE MALE NIPPLE
• Catalog Number: EYD96
• Brand Name: UNILETS.
• Model: EYD
• Type: DRAIN
• Turning Radius: 3.44 INCH
• Trade Size: 3-1/2 INCH
• Connection Type: MALE, FEMALE
• Material: EPOXY POWDER COATED DICHROMATE ZINC ELECTROPLATED GRAYLOY. IRON
• Catalog Description: EXPLOSIONPROOF RIGID/IMC CONDUIT SEAL, TYPE DRAIN, TURNING RADIUS 3.44 INCH, TRADE SIZE 3-1/2 INCH, CONNECTION TYPE MALE, FEMALE, MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED MALLEABLE IRON, MOUNTING POSITION VERTICAL, ENCLOSURE CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, APPROVAL UL 886/E10444, CSA C22.2, SIZE 9.19 INCH L X 4.75 INCH W, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, RAINTIGHT, USED ON THREADED RIGID/IMC METAL CONDUIT, INCLUDES REMOVABLE MALE NIPPLE
• Category: Steel Sealing Bodies
• Full Technical Description: Drain Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron Material; Tapered Threaded Male/Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 3-1/2 Inch Trade Size; Vertical Mounting Position; 3.44 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 9.19 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYD Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381620970
• SKU Name: app eyd96

Resources

• Manufacturer Spec Sheet
