Overview

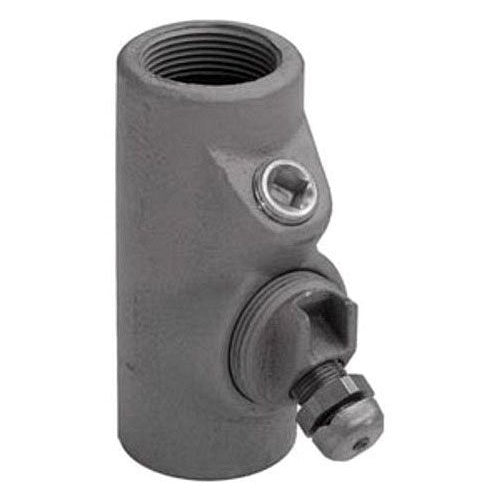

UNILETS® EYDEF200 Dust-Ignitionproof Explosionproof Raintight Conduit Sealing Fitting, 2 in, For Use With IMC/Threaded Rigid Metallic Conduit, Malleable Iron, Triple Coated

Product Specifications

• Catalog Number: EYDEF200
• UPC: 781381694421
• Manufacturer Brand: Appleton®
• UNSPSC: 39121311
• Features: Smooth, rounded integral bushing in each hub to protect conductor insulation; Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity; Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub; Restrict any explosion to the sealed off enclosure; Required in Class I, Division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures; Required in Class I, Division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps; Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location; Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 in or less conduit, seal must be located within 18 in of either enclosure; Required where cables which exceed rate of gas or vapor transmission permitted for seals are used in Class I, Division 2 locations; 40% fill expanded fill sealing fittings for close turning radius
• Country of Origin: Mexico
• Dimensions: 7-1/2 in L x 3-1/2 in W
• Finish: Triple Coated
• Material: Malleable Iron
• Series: EY Series
• Size: 2 in
• Suitable For Use With: IMC/Threaded Rigid Metallic Conduit
• Type: Dust-Ignitionproof Explosionproof Raintight
