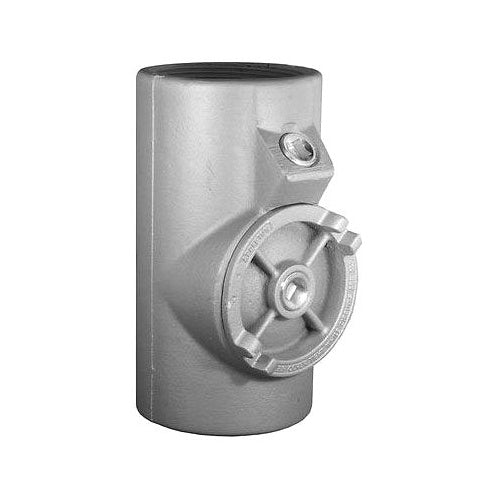

Appleton EYM-600 6" Sealing Unilet

Overview

Appleton EYM-600 6" Sealing Unilet

Product Specifications

• UPC: 78138130173
• Approval: UL
• Additional Information: REMOVABLE MALE NIPPLE
• Catalog Number: EYM-600
• Brand Name: UNILETS[R]
• Turning Radius: 5.38 INCH
• Trade Size: 6 INCH
• Connection Type: MALE, FEMALE
• Material: EPOXY POWDER COATED DICHROMATE ZINC ELECTROPLATED MALLEABLE IRON
• Mounting Position: HORIZONTAL/VERTICAL
• Enclosure: CLASS I GROUP C D, CLASS II GROUP E F G, CLASS III
• Catalog Description: EXPLOSIONPROOF RIGID/IMC CONDUIT SEAL, TURNING RADIUS 5.38 INCH, TRADE SIZE 6 INCH, CONNECTION TYPE MALE, FEMALE, MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED MALLEABLE IRON, MOUNTING POSITION HORIZONTAL/VERTICAL, ENCLOSURE CLASS I DIV 1 AND 2 GROUP A B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, APPROVAL UL 886/E10444, CSA C22.2, SIZE 11.81 INCH L X 7.31 INCH W, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, RAINTIGHT, USED ON THREADED RIGID/IMC METAL CONDUIT, INCLUDES REMOVABLE MALE NIPPLE
• Category: Steel Sealing Bodies
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Tapered Threaded Male/Female Connection Type; CSA C22.2 Approval; Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 6 Inch Trade Size; Vertical/Horizontal Mounting Position; 5.38 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 14.12 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYM Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381301732
• SKU Name: app eym600

Resources

• Manufacturer Spec Sheet
