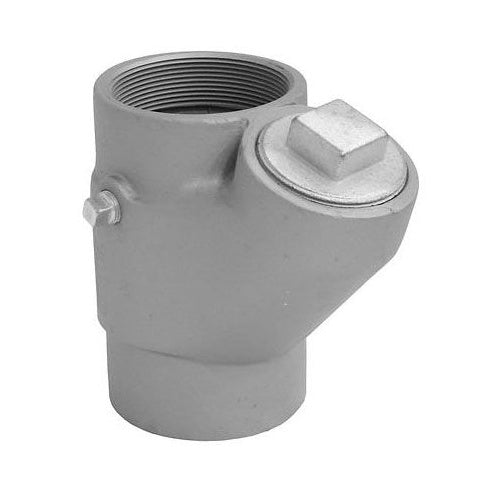

Appleton EYS46 1-1/4" Malleable Conduit Seal

Overview

Appleton EYS46 1-1/4" Malleable Conduit Seal

Product Specifications

• UPC: 78138162118
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL, UL 886, CSA, CSA C22.2
• Additional Information: REMOVABLE MALE NIPPLE
• Catalog Number: EYS46
• Brand Name: Unilets[R]
• Model: EYS
• Turning Radius: 1.75 Inch
• Trade Size: 1-1/4 Inch
• Connection Type: Male/Female Threaded
• Material: Zinc Electroplated Chromate Epoxy Powder Coated Grayloy Iron
• Mounting Position: Vertical/Horizontal
• Catalog Description: UNILETS EYS SERIES 25 PCT FILL VERTICAL AND HORIZONTAL SEALING FITTING WITH REMOVABLE NIPPLE, SIZE: 1-1/4 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONNECTION: TAPERED
• Category: Steel Sealing Bodies
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron Material; Tapered Threaded Male/Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 1-1/4 Inch Trade Size; Vertical/Horizontal Mounting Position; 1.75 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 5.06 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYS Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381621182
• SKU Name: app eys46

Resources

• Manufacturer Spec Sheet
