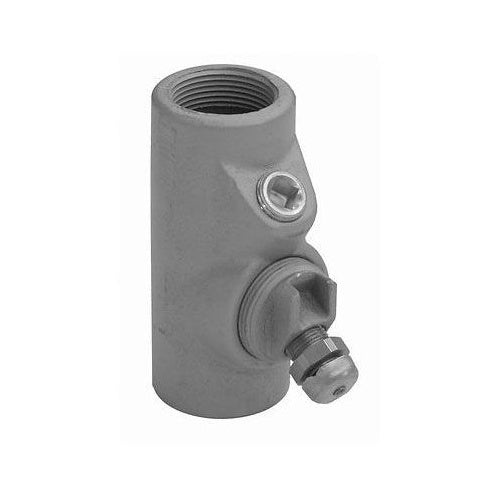

Appleton EYSEF100AL 1" Aluminum Conduit Seal

Overview

Appleton EYSEF100AL 1" Aluminum Conduit Seal

Product Specifications

• UPC: 78138180983
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL 1203, CSA C22.2
• Catalog Number: EYSEF100AL
• Brand Name: Unilet[R]
• Model: EYSEF
• Turning Radius: 1.75 Inch
• Trade Size: 1 Inch
• Connection Type: Female
• Material: Epoxy Powder Coated Almag 35 Aluminum
• Mounting Position: Horizontal/Vertical
• Catalog Description: UNILETS EY SERIES 40 PCT EXPANDED FILL VERTICAL AND HORIZONTAL CONDUIT SEALING FITTING, SIZE: 1 IN, MATERIAL: ALMAG 35 ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: FEMALE THREADED, TURNING RADIUS: 1-3/4 IN, LENGTH: 5.06 IN, WIDTH: 2.19 IN, STANDARD: UL 886 (1203), UL FILE NUMBER E10444, CSA C22.2 NO. 30, CSA 065181, UL LISTED FOR CLASS I, GROUPS B, C, D, CLASS II, GROUPS E, F, G, AND CLASS III, FOR USE WITH THREADED RIGID METAL CONDUIT AND IMC
• Category: Aluminum Sealing Bodies
• Full Technical Description: Epoxy Powder Coated Copper-Free Almag 35 Aluminum Material; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 1 Inch Trade Size; Vertical/Horizontal Mounting Position; 1.75 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 5.06 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYSEF Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381809832
• SKU Name: app eysef100al
