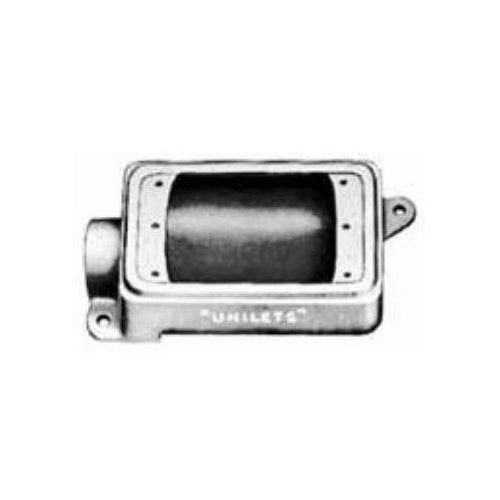

Appleton FD-1-75L-A 3/4" 1-Gang Aluminum FD Box

Overview

Appleton FD-1-75L-A 3/4" 1-Gang Aluminum FD Box

Product Specifications

• UPC: 78138145573
• Number Of Hubs: 1
• Hub Location: End
• Hub Size: 3/4 Inch
• Material: Epoxy Powder Coated Copper-Free Aluminum, Neoprene (Gasket), Stainless Steel (Screw)
• Shape: Deep
• Configuration Type: FD
• Mounting Hardware: (2) Lug
• Approval: UL 514A
• Additional Information: Constructional Feature Corrosion Resistant, Weatherproof, Rain Tight, Dust Tight; Application Accommodate Wiring Device, Serve as Pull Box for Conductor, Indoor/Outdoor; Applicable Standard FB-1
• Catalog Number: FD-1-75L-A
• Brand Name: Appleton
• Model: FD
• Height: 5.88 Inch
• Width: 2.81 Inch
• Depth: 2.69 Inch
• Capacity: 25 Cubic Inch
• Number Of Gangs: 1
• Catalog Description: UNILETS FD DEEP DEPTH 1-GANG CAST DEVICE BOX, NUMBER OF OUTLET: 1, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, SIZE: 3/4 IN, CABLE ENTRY: (1) 3/4 IN HUB, MOUNTING: (2) 5/16 DIAMETER LUGS, CUBIC CAPACITY: 25 CU-IN, KNOCKOUTS:
• Category: Aluminum Fs&Fd Type Boxes & Covers
• Full Technical Description: Epoxy Powder Coated Aluminum Material; 2.81 Inch; 5.88 Inch; 2.69 Inch; Deep Shape; 3/4 Inch Hub Size; 1 Hub(S); 1 Gang(S); UL 514A Approval; 25 Cubic Inch Capacity; (2) Lug Mounting Hardware; FD Configuration Type; Includes Stainless Steel Screw; Used on Imc/Rigid Metal Conduit; Application Commercial/Industrial, Switch and Receptacle, Special Conduit Entrance Arrangement; Applicable Standard Nec/Cec, NEMA FB-1; FD Model
• Manufacturer: APPLETON ELECTRIC COMPANY
• Manufacturer Brand: Appleton Electric
• Sub Category: Cast Device Box
• Unspsc: 39121315
• UPC 12 Digit: 781381455732
• SKU Name: app fd175la
