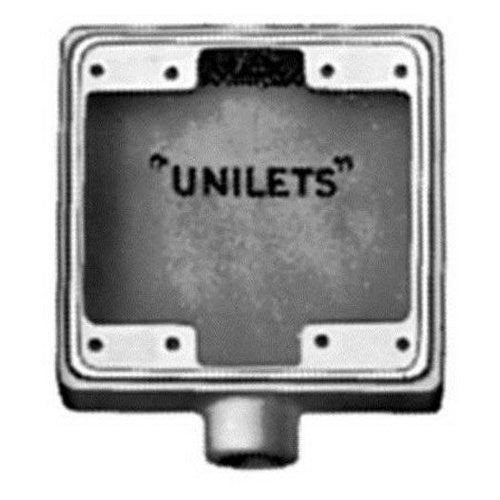

Appleton FD250 2-Gang Malleable FD Box

Overview

Appleton FD250 2-Gang Malleable FD Box

Product Specifications

• UPC: 78138133415
• Number Of Hubs: 1
• Hub Location: (1) End
• Hub Size: 1/2 Inch
• Material: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron
• Shape: Deep
• Configuration Type: FD
• Approval: UL, CSA
• Additional Information: Includes Internal Ground Screw; Application Commercial and Industrial; Applicable Standard NEMA FB-1
• Catalog Number: FD250
• Brand Name: Unilets[R]
• Model: FD
• Height: 5.88 Inch
• Width: 4.63 Inch
• Depth: 2.69 Inch
• Capacity: 45 Cubic Inch
• Number Of Gangs: 1
• Catalog Description: UNILETS FD DEEP DEPTH 2-GANG CAST DEVICE BOX, NUMBER OF OUTLET: 1, MATERIAL: MALLEABLE IRON, SIZE: 1/2 IN, CABLE ENTRY: (1) 1/2 IN HUB, CUBIC CAPACITY: 45 CU-IN, KNOCKOUTS: NO, HEIGHT: 4.63 IN, WIDTH: 4.63 IN, DEPTH: 2.69 IN, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), STANDARD: UL 514 A, UL FILE NUMBER E2527, CSA C22.2 NO. 18.1, CSA 001472 CERTIFIED, NEMA FB-1, FOR USE WITH THREADED METAL CONDUIT AND IMC
• Category: Steel Fs & Fd Type Boxes & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; 4.63 Inch; 5.88 Inch; 2.69 Inch; Deep Shape; 1/2 Inch Hub Size; 1 Hub(S); 2 Gang(S); UL 514A Approval; 45 Cubic Inch Capacity; Not Included Mounting Hardware; FD Configuration Type; Includes Stainless Steel Screw; Used on Imc/Rigid Metal Conduit; Application Commercial/Industrial, Switch and Receptacle, Special Conduit Entrance Arrangement; Applicable Standard Nec/Cec, NEMA FB-1; FD Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Cast Device Box
• Unspsc: 39121315
• UPC 12 Digit: 781381334150
• SKU Name: app fd250

Resources

• Manufacturer Spec Sheet
