Overview

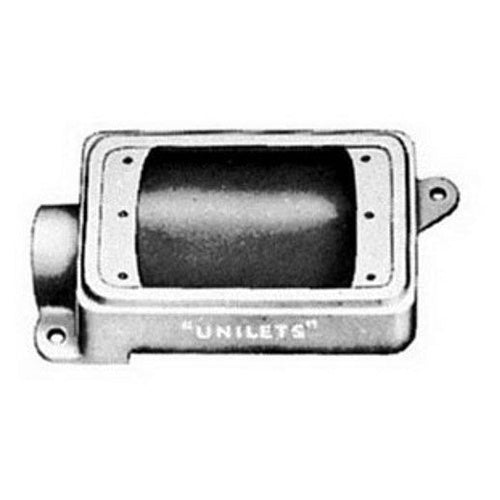

Appleton FS150A 1-Gang Aluminum FS Box

Product Specifications

• UPC: 78138134080
• Number Of Hubs: 1
• Hub Location: End
• Hub Size: 1/2 Inch
• Material: Epoxy Powder Coated Copper Free Aluminum
• Shape: Shallow
• Configuration Type: FS
• Mounting Hardware: Not Included
• Approval: UL 514A
• Additional Information: Application Indoor/Outdoor
• Catalog Number: FS150A
• Brand Name: Unilet[R]
• Model: FS
• Height: 5.88 Inch
• Width: 2.81 Inch
• Depth: 2 Inch
• Capacity: 18 Cu Inch
• Number Of Gangs: 1
• Catalog Description: UNILETS FS SHALLOW DEPTH 1-GANG CAST DEVICE BOX, NUMBER OF OUTLET: 1, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, SIZE: 1/2 IN, CABLE ENTRY: (1) 1/2 IN HUB, CUBIC CAPACITY: 25 CU-IN, KNOCKOUTS: NO, HEIGHT: 4.56 IN, WIDTH: 2.81 I
• Category: Aluminum Fs&Fd Type Boxes & Covers
• Full Technical Description: Epoxy Powder Coated Aluminum Material; 2.81 Inch; 5.88 Inch; 2 Inch; Shallow Shape; 1/2 Inch Hub Size; 1 Hub(S); 1 Gang(S); UL 514A Approval; 18 Cubic Inch Capacity; Not Included Mounting Hardware; FS Configuration Type; Includes Stainless Steel Screw; Used on Imc/Rigid Metal Conduit; Application Commercial/Industrial, Switch and Receptacle, Special Conduit Entrance Arrangement; Applicable Standard Nec/Cec, NEMA FB-1; FS Model
• Manufacturer: APPLETON ELECTRIC COMPANY
• Manufacturer Brand: Appleton Electric
• Sub Category: Cast Device Box
• Unspsc: 39121315
• UPC 12 Digit: 781381340809
• SKU Name: app fs150a

Resources

• Manufacturer Spec Sheet
