Appleton FSCC175 1-Gang Malleable FS cc Box

Overview

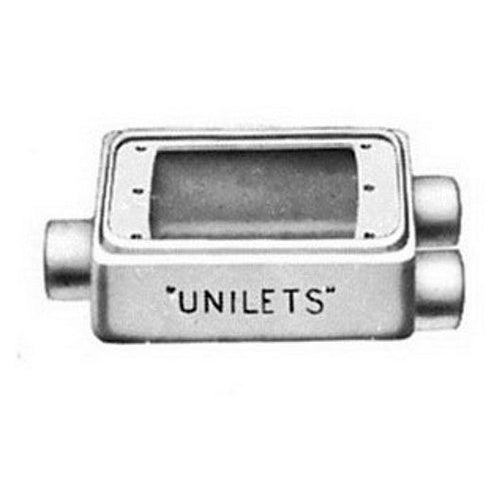

Appleton FSCC175 1-Gang Malleable FS cc Box

Product Specifications

• UPC: 78138134565
• Number Of Hubs: 3
• Hub Location: (2) One Ends, (1) Other End
• Hub Size: 3/4 Inch
• Material: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron
• Shape: Shallow
• Configuration Type: FSCC
• Approval: UL, CSA
• Additional Information: Includes Internal Ground Screw; Application Commercial and Industrial; Applicable Standard NEMA FB-1
• Catalog Number: FSCC175
• Brand Name: Unilets[R]
• Model: FSCC
• Height: 5.88 Inch
• Width: 2.81 Inch
• Depth: 2 Inch
• Capacity: 18 Cubic Inch
• Number Of Gangs: 1
• Catalog Description: UNILETS FSCC SHALLOW DEPTH 1-GANG CAST DEVICE BOX, NUMBER OF OUTLET: 3, MATERIAL: MALLEABLE IRON, SIZE: 3/4 IN, CABLE ENTRY: (3) 3/4 IN HUB, CUBIC CAPACITY: 25 CU-IN, KNOCKOUTS: NO, HEIGHT: 4.56 IN, WIDTH: 2.81 IN, DEPTH: 2 IN, FINISH: TR
• Category: Steel Fs & Fd Type Boxes & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; 2.81 Inch; 5.88 Inch; 2 Inch; Shallow Shape; 3/4 Inch Hub Size; 3 Hub(S); 1 Gang(S); UL 514A Approval; 18 Cubic Inch Capacity; Not Included Mounting Hardware; Fscc Configuration Type; Includes Stainless Steel Screw; Used on Imc/Rigid Metal Conduit; Application Commercial/Industrial, Switch and Receptacle, Special Conduit Entrance Arrangement; Applicable Standard Nec/Cec, NEMA FB-1; FS Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Cast Device Box
• Unspsc: 39121315
• UPC 12 Digit: 781381345651
• SKU Name: app fscc175

Resources

• Manufacturer Spec Sheet
