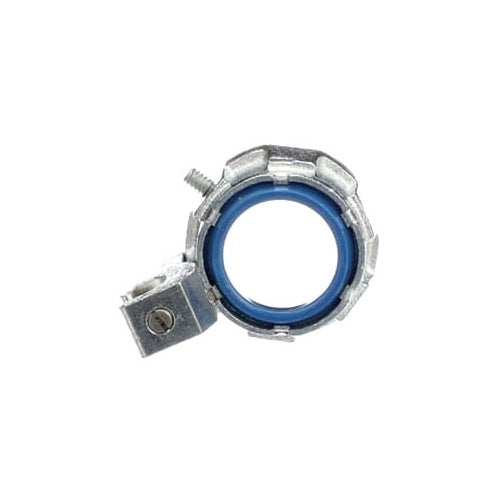

Appleton GIB-250L-20AC 2-1/2" Grounding Bushing

Overview

Appleton GIB-250L-20AC 2-1/2" Grounding Bushing

Product Specifications

• UPC: 78138109119
• Diameter: 3.38 Inch
• Height: 0.88 Inch
• Material: Zinc Plated Malleable Iron
• Approval: UL 514B, CSA C22.2
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard NEMA FB-1; Temperature Rating 150 Deg C
• Catalog Number: GIB-250L-20AC
• Model: Series GIB-L-AC
• Type: Threaded
• Trade Size: 2-1/2 Inch
• Wire Size: 14 AWG Solid to 2/0 AWG Stranded
• Lug Type: Lay-In, Aluminum
• Conductor Material: Copper/Aluminum
• Throat Type: Insulated
• Catalog Description: INSULATED GROUNDING BUSHING WITH ALUMINUM LAY-IN-LUG, SIZE: 2-1/2 IN, MATERIAL: MALLEABLE IRON, FINISH: ZINC ELECTROPLATED BODY, TIN PLATED LUG, CONNECTION: THREADED, TEMPERATURE RATING: 150 DEG C, DIMENSIONS: 0.88 IN HEIGHT X 3.38 IN DIAMETER, CABLE SIZE: 14 AWG SOLID - 2/0 AWG STRANDED, TURNING RADIUS: 2-1/2 IN, STANDARD: UL 467, E6581, CSA C22.2 NO. 41, NEMA FB-1, FOR USE WITH THREADED RIGID METAL CONDUIT AND IMC
• Category: Rigid Conduit Fittings - Aluminum
• Full Technical Description: Threaded, Set Screw Type; Zinc Plated Malleable Iron (Body), Zinc Plated Steel (Clamping/Set Screw) Material; 0.88 Inch; Imc/Rigid Conduit Used on; 14 AWG Solid to 2/0 AWG Stranded Wire Size; Copper/Aluminum Conductor Material; UL 467/514B, CSA C22.2 Approval; 3.38 Inch Diameter; 2-1/2 Inch Trade Size; Insulated Throat Type; Tin Plated Aluminum, Lay-in Lug Type; Turning Radius 2.5 Inch; Temperature Rating 302 Deg F; Includes Lug; Applicable Standard Nec/Cec; GIB-L Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Grounding Bushing
• Unspsc: 39121312
• UPC 12 Digit: 781381091190
• SKU Name: app gib250l20ac
