Overview

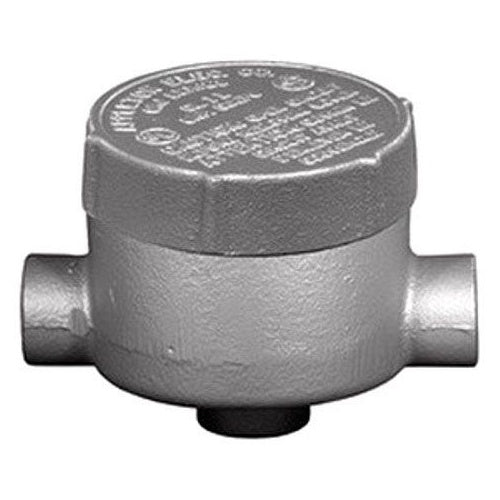

Appleton GRJCA50 1/2" Junction Unilet

Product Specifications

• UPC: 78138144030
• Capacity: 7.3 Cu Inch
• Shape: Round
• Cover Type: Internally Threaded
• Cover Opening Diameter: 2.13 Inch
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Material: Zinc Electroplated Dichromate Epoxy Powder Coated Malleable Iron
• Approval: UL 886, CSA C22.2
• Additional Information: Includes Cover; Application General Purpose Wiring, Pulling of Wires, Connect Conduit Lengths and Change Direction of Conduit Runs, Provide Access for Maintenance
• Catalog Number: GRJCA50
• Brand Name: Unilet[R]
• Model: GRJC
• Style: CA
• Hub Size: 1/2 Inch
• Hub Type: External
• Number Of Hubs: 3
• Hub Location: (2) Side, (1) Down
• Catalog Description: UNILETS OUTLET BOX, NUMBER OF OUTLET: 3, MATERIAL: MALLEABLE IRON, SIZE: 1/2 IN, CABLE ENTRY: (3) 1/2 IN GRJCA HUB, CUBIC CAPACITY: 7.3 CU-IN, KNOCKOUTS: NO, COVER OPENING: 2.13 IN, HEIGHT: 2.88 IN, WIDTH: 2.88 IN, DEPTH: 2.06 IN, FINISH:
• Category: Miscellaneous Conduit Bodies
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Round Shape; 1/2 Inch Hub Size; 3 Hub(S); UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; Internally Threaded Cover Type; 7.3 Cubic Inch Capacity; CA Style; (2) Side, (1) Down Hub Location; External Hub Type; 2.13 Inch Cover Opening Diameter; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Includes Cover, Internal Ground Screw and O-ring; Application General Purpose Wiring, Indoor and Outdoor; Applicable Standard Nec/Cec; GRJ Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121308
• UPC 12 Digit: 781381440301
• SKU Name: app grjca50

Resources

• Manufacturer Spec Sheet
