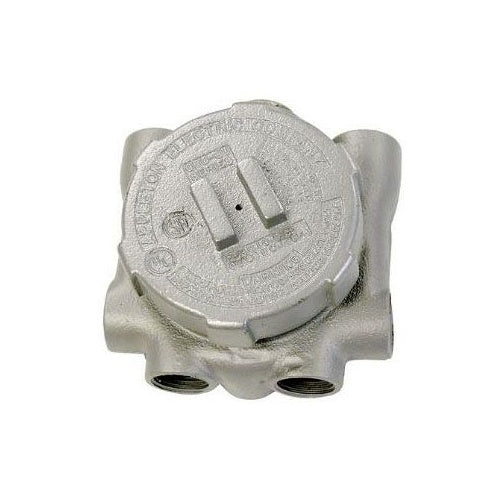

Appleton GRUO-2 Junction Unilet

Overview

Appleton GRUO-2 Junction Unilet

Product Specifications

• UPC: 78138144615
• Shape: Round
• Number Of Plugs: 5
• Cover Type: Internally Threaded
• Cover Opening Diameter: 3.25 Inch
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Material: Zinc Electroplated Dichromate Epoxy Powder Coated Malleable Iron
• Approval: UL 886, CSA C22.2
• Additional Information: Constructional Feature Explosionproof; Includes Cover; Application General Purpose Wiring, Pulling of Wires, Connect Conduit Lengths and Change Direction of Conduit Runs, Provide Access for Maintenance
• Catalog Number: GRUO-2
• Brand Name: Appleton
• Model: GRUO
• Hub Size: (7) 3/4 Inch, (1) 1 Inch
• Hub Type: External
• Number Of Hubs: 8
• Hub Location: (2) Side, (2) Top, (3) Down, (1) Back
• Capacity: 25 Cubic Inch
• Catalog Description: UNILETS GRUO OUTLET BOX, NUMBER OF OUTLET: 8, MATERIAL: MALLEABLE IRON, SIZE: 3/4 - 1 IN, CABLE ENTRY: (1) 3/4 IN HUB ON EACH SIDE, (2) 3/4 IN HUB ON TOP, (2) 3/4 IN HUB AT BOTTOM, (1) 1 IN HUB AT BOTTOM, (1) 3/4 IN HUB AT BACK, CUBIC CAPACITY: 25 CU-IN, KNOCKOUTS: NO, COVER OPENING: 3-1/4 IN, HEIGHT: 5.13 IN, WIDTH: 5-1/4 IN, DEPTH: 2.19 IN, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), STANDARD: UL 886, UL FILE NUMBER E10444, CSA C22.2 NO. 25, C22.2 NO. 30, 025875, 013017 CERTIFIED, CLASS I, DIVISION 1 AND 2, GROUPS C, D, CLASS II, DIVISION 1 AND 2, GROUPS E, F, G, CLASS III, FOR USE WITH THREADED METAL CONDUIT
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Round Shape; (7) 3/4 Inch, (1) 1 Inch Hub Size; 8 Hub(S); UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; Internally Threaded Cover Type; 25 Cubic Inch Capacity; (2) Side, (2) Top, (3) Down, (1) Back Hub Location; External Hub Type; 3.25 Inch Cover Opening Diameter; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Includes Cover, Multiple Hub; Application General Purpose Wiring, Indoor and Outdoor; Applicable Standard Nec/Cec; GRUO Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121308
• UPC 12 Digit: 781381446150
• SKU Name: app gruo2
