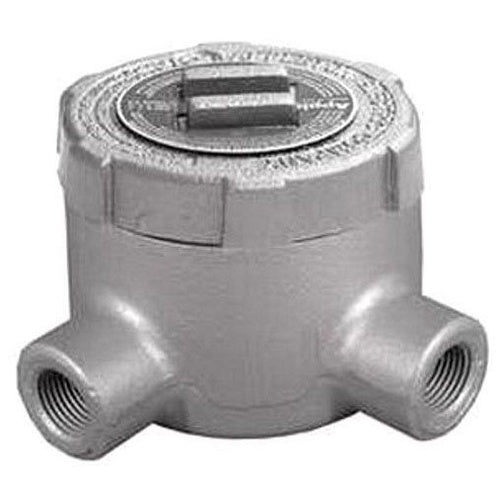

Appleton GUL50 1/2" Junction Unilet

Overview

Appleton GUL50 1/2" Junction Unilet

Product Specifications

• UPC: 78138151738
• Shape: ROUND
• Cover Type: INTERNALLY THREADED
• Cover Opening Diameter: 3.38 INCH
• Enclosure: CLASS I GROUP B C D, CLASS II GROUP E F G, CLASS III
• Material: ZINC ELECTROPLATED DICHROMATE EPOXY POWDER COATED MALLEABLE IRON
• Catalog Number: GUL50
• Brand Name: Appleton[R]
• Model: GU
• Style: L
• Hub Size: 1/2 INCH
• Hub Type: EXTERNAL
• Number Of Hubs: 2
• Hub Location: (2) SIDE
• Catalog Description: UNILETS OUTLET BOX, NUMBER OF OUTLET: 2, MATERIAL: MALLEABLE IRON, SIZE: 1/2 IN, CABLE ENTRY: (2) 1/2 IN GUC HUB, CUBIC CAPACITY: 19 CU-IN, KNOCKOUTS: NO, COVER OPENING: 3.38 IN, HEIGHT: 4.28 IN, WIDTH: 4.28 IN, DEPTH: 2-1/4 IN, FINISH: TRI
• Category: Miscellaneous Conduit Bodies
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Ductile Iron Material; Round Shape; 1/2 Inch Hub Size; 2 Hub(S); UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/4 Enclosure; Internally Threaded Cover Type; 19 Cubic Inch Capacity; L Style; (2) Side Hub Location; External Hub Type; 3.38 Inch Cover Opening Diameter; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Includes Cover, Gasket, Internal Ground Screw; Application Indoor and Outdoor; Applicable Standard Nec/Cec; GU Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121308
• UPC 12 Digit: 781381517386
• SKU Name: app gul50

Resources

• Manufacturer Spec Sheet
