Overview

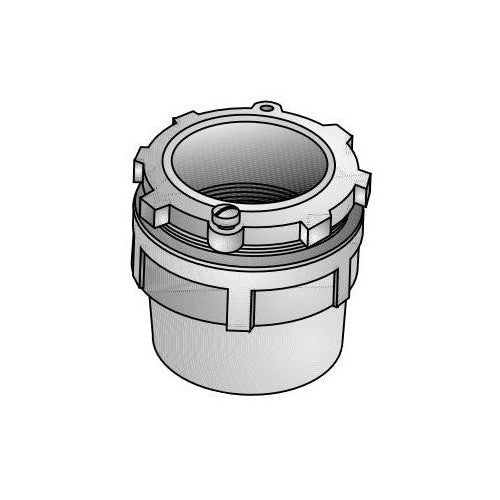

Appleton HUB-50 1/2" Insulated Ko Hub

Product Specifications

• UPC: 78138146255
• Used On: IMC/Rigid Conduit
• Additional Information: Enclosure Type Class I Div 2, Class III Div 1 and 2, NEMA 4/12; Application Commercial, Industrial, Hazardous Location; Applicable Standard ANSI, NEMA FB-1, NEC/CEC
• Catalog Number: HUB-50
• Type: Threaded, Straight
• Throat Type: Insulated
• Trade Size: 1/2 Inch
• Size: 1.08 Inch Diameter x 1.11 Inch Length
• Constructional Feature: Water Tight, Vibration Resistant
• Material: Zinc Electroplated Malleable Iron (Body), Neoprene (Gasket)
• Approval: UL, CSA
• Catalog Description: STRAIGHT INSULATED THROAT HUB, SIZE: 1/2 IN, MATERIAL: STEEL, FINISH: ZINC ELECTROPLATE, LENGTH: 1.11 IN, HEIGHT: 1.08 IN, STANDARD: UL 514B, UL FILE NUMBER E14814, CSA C22.2 NO. 18.3, CSA 065178, NEMA FB-1, UL LISTED FOR CLASS I, DIVISION
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Female Threaded, Straight Type; Zinc Electroplated Ductile Iron (Body), Neoprene (Gasket) Material; 1.08 Inch Diameter X 1.11 Inch Length Size; Imc/Rigid Metal Conduit Used on; UL 514B, CSA C22.2 Approval; 1/2 Inch Trade Size; Water Tight, Vibration Resistant; Insulated Throat Type; Hole Diameter 0.88 to 0.97 Inch; Panel Thickness 0.09 to 0.25 Inch; Enclosure Rating Class I Div 2, Class III Div 1 and 2; Application Commercial/Industrial, Hazardous/Wet Location; Applicable Standard ANSI, Nec/Cec, NEMA FB-1/4/12
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Rigid/EMT Conduit Hub
• Unspsc: 39121311
• UPC 12 Digit: 781381462556
• SKU Name: app hub50

Resources

• Manufacturer Spec Sheet
