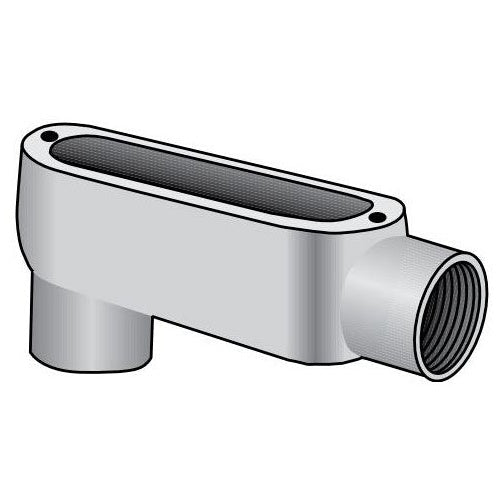

Appleton LB150-A 1-1/2" Aluminum LB-Type Conduit Body

Product Specifications

• UPC: 78138147675
• Capacity: 35 Cubic Inch
• Enclosure: Class I Div 2
• Material: Copper-Free Aluminum (Body), Stainless Steel (Screw)
• Finish: Epoxy Powder Coated
• Size: 7.88 Inch Length x 3.81 Inch Height
• Approval: UL 514A/B, CSA C22.2
• Additional Information: Form Type Form 85; Installation Threaded; Used On Rigid/IMC Conduit; Application Commercial, Industrial, Hazardous Location; Applicable Standard NEC, CEC, NEMA FB-1
• Catalog Number: LB150-A
• Brand Name: Appleton
• Model: LB
• Configuration: LB
• Hub Size: 1-1/2 Inch
• Number Of Hubs: 2
• Hub Location: 90 Degree
• Access Opening: Back
• Catalog Description: FORM 85 UNILETS TYPE LB CONDUIT OUTLET BODY, HUB SIZE: 1-1/2 IN, FORM: 85, LENGTH: 7.88 IN, HEIGHT: 3.81 IN, MATERIAL: PRESSURE CAST ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED FEMALE THREADED, STANDARD: UL 514A, UL 514B, UL FILE NUMBER E2527, CSA C22.2 NO. 18.3, CSA 065183, NEMA FB-1, FOR USE WITH RIGID STEEL, RIGID ALUMINUM CONDUIT, IMC AND EMT
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Epoxy Powder Coated Copper-Free Pressure Cast Aluminum (Body), Stainless Steel (Cover Screw) Material; 7.88 Inch Length X 3.81 Inch Height Size; Imc/Rigid Conduit Used on; 1-1/2 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 85 Form Type; Back Access Opening; UNILETS[R], Form 85[TM] Brand; Wire Size (3) 1/0 AWG; Capacity 35 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381476751
• SKU Name: app lb150a
