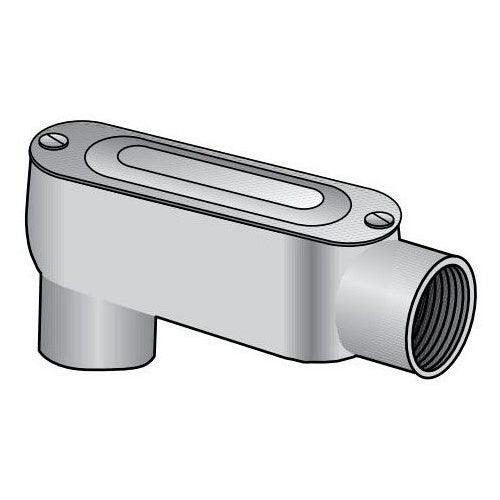

Appleton LB-150ACGA Aluminum Conduit Outlet Body

Overview

Appleton LB-150ACGA Aluminum Conduit Outlet Body

Product Specifications

• UPC: 78138182597
• Hub Size: 1-1/2 Inch
• Size: 7-7/8 Inch Length x 2-1/2 Inch Width
• Installation: Threaded
• Material: Epoxy Powder Coated Die-Cast Copper-Free Aluminum (Body), Neoprene (Gasket), Stainless Steel (Screw)
• Approval: UL 514A/B, CSA C22.2
• Used On: IMC/Rigid Conduit
• Additional Information: Capacity 35.8 Cubic Inch; Includes Cover, Gasket; Applicable Standard NEMA FB-1
• Catalog Number: LB-150ACGA
• Brand Name: Appleton
• Model: LB
• Access Opening: Back
• Configuration: LB
• Cover Type: Plain Aluminum
• Hub Location: 90 Degree
• Number Of Hubs: 2
• Catalog Description: FORM 85 UNILETS TYPE LB CONDUIT OUTLET BODY WITH ASSEMBLED COVER AND GASKET, HUB SIZE: 1-1/2 IN, FORM: 85, LENGTH: 7.88 IN, HEIGHT: 3.81 IN, MATERIAL: PRESSURE CAST ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED FEMALE THREAD
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Epoxy Powder Coated Enamel Copper-Free Aluminum (Body), Neoprene (Gasket) Material; 7.88 Inch Length X 3.81 Inch Height Size; Imc/Rigid Conduit Used on; 1-1/2 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL 514A, CSA C22.2 Approval; Epoxy Powder Coated Enamel Copper-Free Aluminum Cover Type; 90 Degree Hub Location; Form 85 Form Type; Back Access Opening; UNILETS[R], Form 85[TM] Brand; Wire Size (3) 1/0 AWG; Enclosure Rating Class I Div 2/2.1; Includes Assembled Cover and Gasket; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381825979
• SKU Name: app lb150acga
