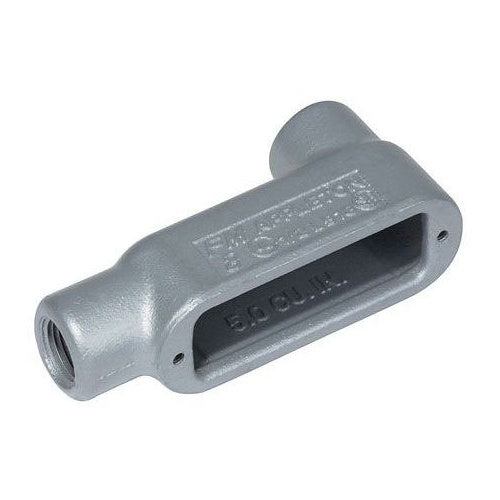

Appleton LB18 1/2" Conduit Body

Overview

Appleton LB18 1/2" Conduit Body

Product Specifications

• UPC: 78138174397
• Enclosure: Class I Div 2
• Material: Grayloy Iron (Body), Stainless Steel (Screw), Neoprene (Gasket)
• Finish: Zinc Electroplated Chromate Epoxy Powder Coated (Body)
• Size: 5.09 Inch Length x 2.28 Inch Height
• Approval: UL 514A/B, CSA C22.2
• Additional Information: Form Type Form 8; Installation Threaded; Used On Rigid/IMC Conduit; Application Commercial, Industrial, Hazardous Location; Applicable Standard NEC, CEC, NEMA FB-1
• Catalog Number: LB18
• Brand Name: FM8[TM]
• Configuration: LB
• Hub Size: 1/2 Inch
• Number Of Hubs: 2
• Hub Location: 90 Degree
• Access Opening: Back
• Capacity: 5 Cubic Inch
• Catalog Description: FM8 GRAYLOY-IRON UNILETS TYPE LB CONDUIT OUTLET BODY, HUB SIZE: 1/2 IN, FORM: 8, LENGTH: 5.09 IN, HEIGHT: 2.28 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONNECTION: TAPE
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron (Body), Stainless Steel (Cover Screw) Material; 5.09 Inch Length X 2.28 Inch Height Size; Imc/Rigid Conduit Used on; 1/2 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 8 Form Type; Back Access Opening; FM8[TM] Brand; Capacity 5 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381743976
• SKU Name: app lb18
