Overview

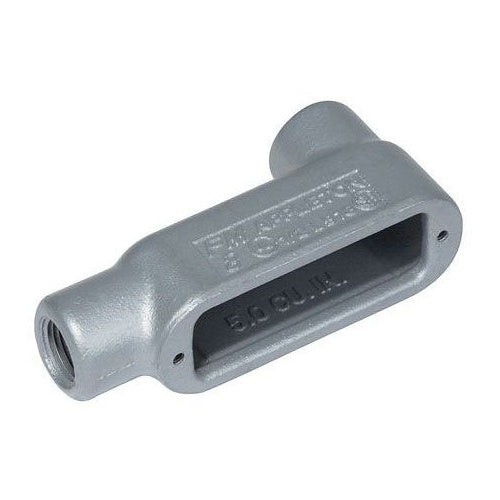

Appleton LB28 3/4" Conduit Body

Product Specifications

• UPC: 78138174398
• Hub Size: 3/4 Inch
• Size: 5.75 Inch Length x 2.5 Inch Height
• Installation: Threaded
• Material: Zinc Electroplated Chromate Epoxy Powder Coated Gray Iron (Body), Neoprene (Gasket), Stainless Steel Cover (Screw)
• Form Type: Form 8
• Approval: UL 514A/B, CSA C22.2, NEC, CEC
• Used On: IMC/Rigid Conduit
• Additional Information: Capacity 8 Cubic Inch; Application Serve as Pulling Fitting, Make Bend in Conduit System, Provide Openings for Splicing, Connect and Change Direction of Conduit Run, Allow Connections for Branch Run, Permit Access to Conductors for Maintenance; Applicable
• Catalog Number: LB28
• Brand Name: Appleton
• Model: LB
• Access Opening: Back
• Configuration: LB
• Cover Type: Zinc Electroplated Chromate Epoxy Powder Coated Gray Cast Iron Alloy
• Hub Location: 90 Degree
• Number Of Hubs: 2
• Catalog Description: FM8 GRAYLOY-IRON UNILETS TYPE LB CONDUIT OUTLET BODY, HUB SIZE: 3/4 IN, FORM: 8, LENGTH: 5-3/4 IN, HEIGHT: 2-1/2 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONNECTION: TA
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron (Body), Stainless Steel (Cover Screw) Material; 5.75 Inch Length X 2.5 Inch Height Size; Imc/Rigid Conduit Used on; 3/4 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 8 Form Type; Back Access Opening; FM8[TM] Brand; Wire Size (3) 6 AWG; Capacity 8 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381743983
• SKU Name: app lb28
