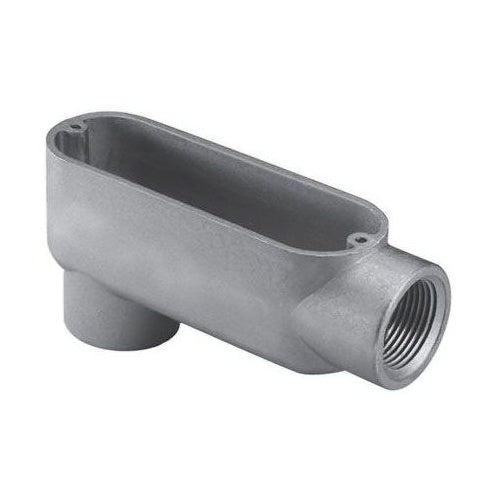

Appleton LB300-A 3" Aluminum LB-Type Conduit Body

Product Specifications

• UPC: 78138147735
• Hub Size: 3 Inch
• Size: 13.69 Inch L x 6 Inch H
• Installation: Threaded
• Material: Epoxy Powder Coated Sand Copper Free Cast Aluminum, Fiber/Neoprene Gasket, Stainless Steel Screw
• Form Type: Form 85
• Approval: UL 514A/B, CSA C22.2, NEC, CEC
• Used On: IMC/Rigid Conduit
• Additional Information: Applicable Standard NEMA FB-1; Capacity 177 Cu Inch; Application Pulling Fitting, Conduit System, Splicing, Connect and Change Direction of Conduit Run, Branch Run Connection, Conductor Maintenance
• Catalog Number: LB300-A
• Brand Name: Unilet[R]
• Model: Form 85
• Access Opening: Back
• Configuration: LB
• Cover Type: Aluminum/Malleable Iron/Steel
• Hub Location: 90 Degree
• Number Of Hubs: 2
• Catalog Description: FORM 85 UNILETS TYPE LB CONDUIT OUTLET BODY, HUB SIZE: 3 IN, FORM: 85, LENGTH: 13.69 IN, HEIGHT: 6 IN, MATERIAL: SAND CAST ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED FEMALE THREADED, STANDARD: UL 514A, UL 514B, UL FILE NUMBER E2527, CSA C22.2 NO. 18.3, CSA 065183, NEMA FB-1, FOR USE WITH RIGID STEEL, RIGID ALUMINUM CONDUIT, IMC AND EMT
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Epoxy Powder Coated Copper-Free Sand Cast Aluminum (Body), Stainless Steel (Cover Screw) Material; 13.69 Inch Length X 6 Inch Height Size; Imc/Rigid Conduit Used on; 3 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 85 Form Type; Back Access Opening; UNILETS[R], Form 85[TM] Brand; Wire Size (3) 400 MCM; Capacity 177 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381477352
• SKU Name: app lb300a
