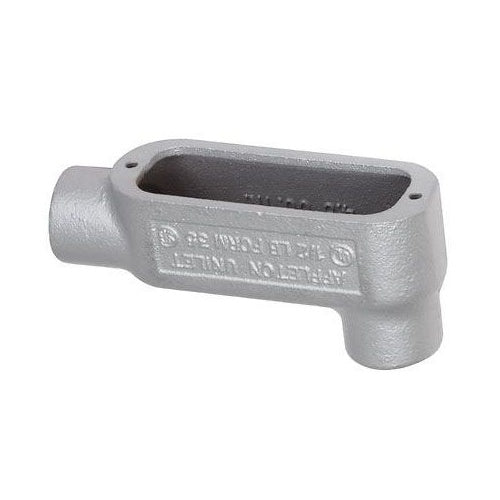

Appleton LB400-M 4" Malleable LB-Type Conduit Body

Overview

Appleton LB400-M 4" Malleable LB-Type Conduit Body

Product Specifications

• UPC: 78138147760
• Hub Size: 4 Inch
• Size: 16.5 Inch Length x 7.19 Inch Height
• Installation: Threaded
• Material: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron (Body), Fiber/Neoprene (Gasket), Stainless Steel (Screw)
• Form Type: Form 35
• Approval: UL 514A/B, CSA C22.2, NEC, CEC
• Used On: IMC/Rigid Conduit
• Additional Information: Application Pulling Fitting, Conduit System, Splicing, Connect and Change Direction of Conduit Run, Branch Run Connection, Conductor Maintenance; Applicable Standard NEMA FB-1
• Catalog Number: LB400-M
• Brand Name: Appleton
• Model: LB
• Access Opening: Back
• Configuration: LB
• Cover Type: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron
• Hub Location: 90 Degree
• Number Of Hubs: 2
• Catalog Description: FORM 35 UNILETS TYPE LB CONDUIT OUTLET BODY, HUB SIZE: 4 IN, FORM: 35, LENGTH: 16-1/2 IN, HEIGHT: 7.19 IN, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), CONNECTION: TAPERED FEMALE THREA
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Stainless Steel (Cover Screw) Material; 16.5 Inch Length X 7.19 Inch Height Size; Imc/Rigid Conduit Used on; 4 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 35 Form Type; Back Access Opening; Form 35[TM] Brand; Wire Size (3) 500 MCM; Capacity 330 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381477604
• SKU Name: app lb400m

Resources

• Manufacturer Spec Sheet
