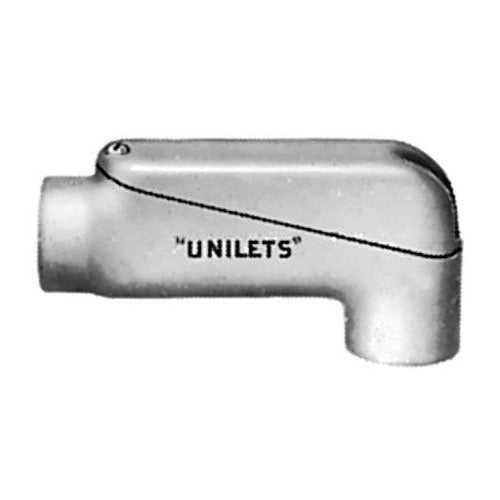

Appleton LBD100-M 1" Malleable LBD-Type Pulling Elbow

Product Specifications

• UPC: 78138147790
• Size: 6.38 Inch Length x 1.75 Inch Width x 2.69 Inch Height
• Installation: Threaded
• Material: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron
• Approval: UL, CSA
• Used On: IMC/Rigid Conduit
• Additional Information: Includes Cover and Gasket; Application Commercial, Industrial, Hazardous Location; Applicable Standard NEC/CEC
• Catalog Number: LBD100-M
• Brand Name: Unilets[R]
• Model: LBD
• Configuration: LBD
• Cover Type: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron
• Hub Location: 90 Degree
• Number Of Hubs: 2
• Hub Size: 1 Inch
• Catalog Description: UNILETS TYPE LBD PULLING FITTING WITH COVER AND GASKET, HUB SIZE: 1 IN, LENGTH: 6.38 IN, WIDTH: 1-3/4 IN, HEIGHT: 2.69 IN, MATERIAL: MALLEABLE IRON BODY, COMPOSITION FIBER GASKET, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), CONNECTION: FEMALE THREADED, STANDARD: UL 514B, UL FILE NUMBER E2527, FOR USE WITH RIGID METAL CONDUIT AND IMC
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body/Cover), Composition Fiber (Gasket) Material; 6.38 Inch Length X 1.75 Inch Width X 2.69 Inch Height Size; Imc/Rigid Metal Conduit Used on; Threaded Female/Female Installation; UL 514B, CSA C22.2 Approval; 1 Inch Trade Size; 90 Degree Bend Angle; UNILETS[R] Brand; Wiring Capacity 12 Cubic Inch; Includes Gasket Cover; Application Commercial/Industrial; Applicable Standard Nec/Cec; LBD Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Rigid/EMT Conduit Elbow Joint
• Unspsc: 39131708
• UPC 12 Digit: 781381477901
• SKU Name: app lbd100m
