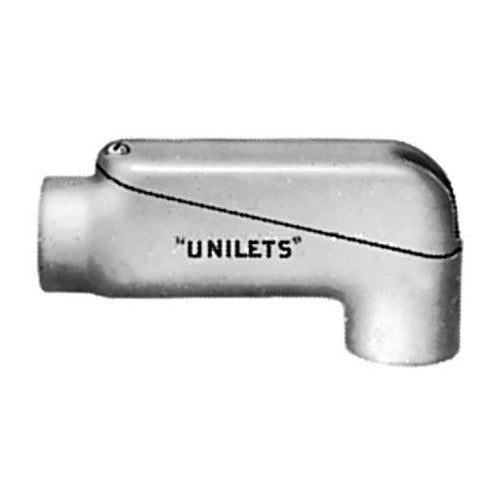

Appleton LBD50-M 1/2" Malleable LBD-Type Pulling Elbow

Product Specifications

• UPC: 78138147780
• Finish: Electro Zinc Plated Dichromate Epoxy Powder Coated
• Approval: UL 514B, NEC, CEC
• Additional Information: Capacity 4 Cu Inch; Application Serve as Pulling Fitting for Heavy/Difficult to Bend Conductors, Use as Service Entrance Fitting
• Catalog Number: LBD50-M
• Brand Name: Unilet[R]
• Model: LBD
• Type: Pulling
• Trade Size: 1/2 Inch
• Bend Angle: 90 Deg
• Connection Type: Female
• Material: Malleable Iron Body/Cover, Fiber Gasket
• Catalog Description: CONDUIT ELBOW, TYPE PULLING, TRADE SIZE 1/2 INCH, BEND ANGLE 90 DEG, CONNECTION TYPE FEMALE, MATERIAL MALLEABLE IRON (BODY/COVER), FIBER (GASKET), FINISH ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED, APPROVAL UL 514B, USED ON THREADED RIGID METAL CONDUIT AND IMC, INCLUSION COVER AND GASKET, SIZE 5 INCH L X 1.31 INCH W X 2.19 INCH H
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body/Cover), Composition Fiber (Gasket) Material; 5 Inch Length X 1.31 Inch Width X 2.19 Inch Height Size; Imc/Rigid Metal Conduit Used on; Threaded Female/Female Installation; UL 514B, CSA C22.2 Approval; 1/2 Inch Trade Size; 90 Degree Bend Angle; UNILETS[R] Brand; Wiring Capacity 4 Cubic Inch; Includes Gasket Cover; Application Commercial/Industrial; Applicable Standard Nec/Cec; LBD Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Rigid/EMT Conduit Elbow Joint
• Unspsc: 39131708
• UPC 12 Digit: 781381477802
• SKU Name: app lbd50m
