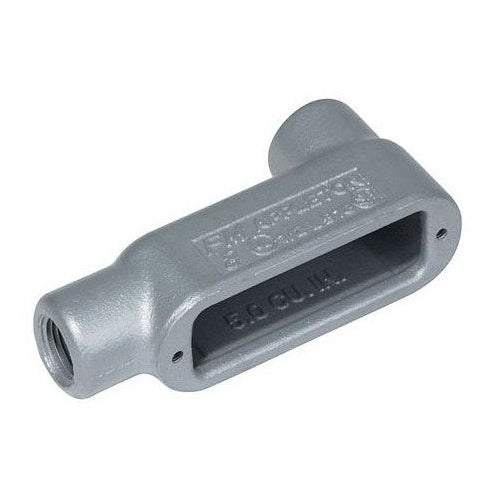

Appleton LL58 1-1/2" Conduit Body

Product Specifications

• UPC: 78138174417
• Enclosure: Class I Div 2
• Material: Grayloy Iron (Body), Stainless Steel (Screw), Neoprene (Gasket)
• Finish: Zinc Electroplated Chromate Epoxy Powder Coated (Body)
• Size: 9.13 Inch Length x 4.03 Inch Width
• Approval: UL 514A/B, CSA C22.2
• Additional Information: Form Type Form 8; Installation Threaded; Used On Rigid/IMC Conduit; Application Commercial, Industrial, Hazardous Location; Applicable Standard NEC, CEC, NEMA FB-1
• Catalog Number: LL58
• Brand Name: FM8[TM]
• Configuration: LL
• Hub Size: 1-1/2 Inch
• Number Of Hubs: 2
• Hub Location: 90 Degree
• Access Opening: Left Side
• Capacity: 42.5 Cubic Inch
• Catalog Description: FM8 GRAYLOY-IRON UNILETS TYPE LL CONDUIT OUTLET BODY, HUB SIZE: 1-1/2 IN, FORM: 8, LENGTH: 9.13 IN, WIDTH: 4.03 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONNECTION: TAP
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron (Body), Stainless Steel (Cover Screw) Material; 9.13 Inch Length X 4.03 Inch Width Size; Imc/Rigid Conduit Used on; 1-1/2 Inch Hub Size; Threaded Installation; LL Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 8 Form Type; Left Side Access Opening; FM8[TM] Brand; Wire Size (3) 1/0 AWG; Capacity 42.5 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381744171
• SKU Name: app ll58
