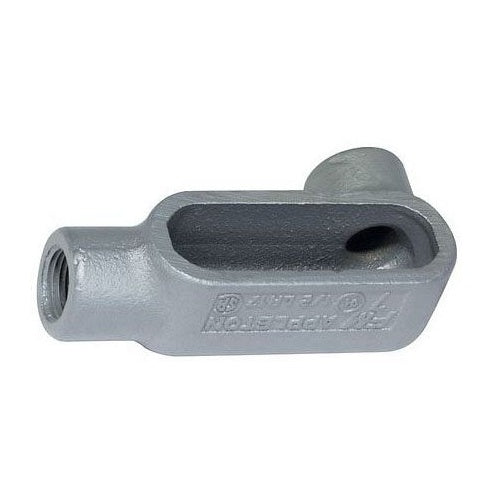

Appleton LL77 2-1/2" LL-Type Conduit Body

Overview

Appleton LL77 2-1/2" LL-Type Conduit Body

Product Specifications

• UPC: 78138150688
• Size: 10.5 Inch L x 5.75 Inch W
• Installation: Threaded
• Material: Zinc Electroplated/Chromate/Epoxy Powder Coated Gray Iron (Body), Neoprene (Gasket), Stainless Steel Cover (Screw)
• Form Type: Form 7
• Approval: UL 514A/514B, CSA C22.2
• Used On: Rigid/IMC Conduit
• Additional Information: Applicable Standard NEMA FB-1; Capacity 102 Cu Inch
• Catalog Number: LL77
• Brand Name: Unilet[R], FM7[TM]
• Access Opening: Left Side
• Configuration: LL
• Cover Type: Zinc Electroplated/Chromate/Epoxy Powder Coated Gray Iron
• Hub Location: 90 Degree
• Number Of Hubs: 2
• Hub Size: 2-1/2 Inch
• Catalog Description: FM7 UNILETS TYPE LL CONDUIT OUTLET BODY, HUB SIZE: 2-1/2 IN, FORM: 7, LENGTH: 10-1/2 IN, WIDTH: 5-3/4 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONNECTION: TAPERED FEMAL
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron (Body), Stainless Steel (Cover Screw) Material; 10.5 Inch Length X 5.75 Inch Width Size; Imc/Rigid Conduit Used on; 2-1/2 Inch Hub Size; Threaded Installation; LL Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 7 Form Type; Left Side Access Opening; FM7[TM] Brand; Wire Size (3) 250 MCM; Capacity 102 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381506885
• SKU Name: app ll77

Resources

• Manufacturer Spec Sheet
