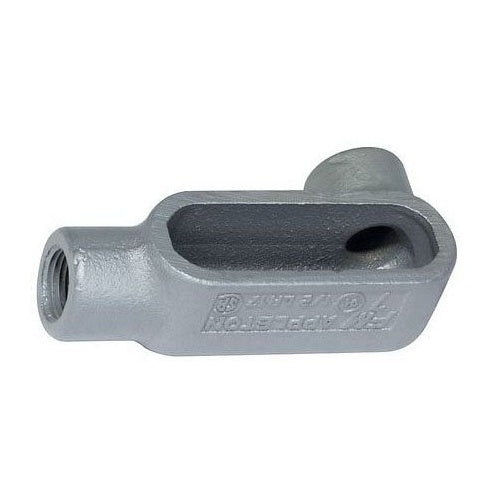

Appleton LL77-SA 2-1/2" Aluminum LL-Type Conduit Body

Overview

Appleton LL77-SA 2-1/2" Aluminum LL-Type Conduit Body

Product Specifications

• UPC: 78138160663
• Size: 10.5 INCH L X 5.75 INCH W
• Installation: THREADED
• Material: EPOXY POWDER COATED COPPER FREE ALUMINUM ALLOY BODY, NEOPRENE GASKET, STAINLESS STEEL COVER SCREW
• Form Type: FORM 7
• Used On: IMC/RIGID CONDUIT
• Additional Information: FEDERAL SPECIFICATION W-C-586B
• Catalog Number: LL77-SA
• Brand Name: Unilet.
• Access Opening: LEFT SIDE
• Configuration: LL
• Cover Type: EPOXY POWDER COATED CAST COPPER FREE ALUMINUM ALLOY
• Hub Location: 90 DEG
• Number Of Hubs: 2
• Hub Size: 2-1/2 INCH
• Catalog Description: IMC/RIGID CONDUIT BODY, ACCESS OPENING LEFT SIDE, CONFIGURATION LL, COVER TYPE EPOXY POWDER COATED CAST COPPER FREE ALUMINUM, HUB LOCATION 90 DEG, NUMBER OF HUBS 2, HUB SIZE 2-1/2 INCH, SIZE 10.5 INCH L X 5.75 INCH W, INSTALLATION THREADED, MATERIAL EPOXY POWDER COATED COPPER FREE ALUMINUM BODY, NEOPRENE GASKET, STAINLESS STEEL SCREW, FORM TYPE FORM 7, APPROVAL UL 514A/514B/E2527, CSA C22.2, USED ON IMC/RIGID CONDUIT, APPLICABLE STANDARD NEC/CEC, NEMA FB-1, CAPACITY 102 CU INCH
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Epoxy Powder Coated Copper-Free Cast Aluminum (Body), Stainless Steel (Cover Screw) Material; 10.5 Inch Length X 5.75 Inch Width Size; Imc/Rigid Conduit Used on; 2-1/2 Inch Hub Size; Threaded Installation; LL Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 7 Form Type; Left Side Access Opening; FM7[TM] Brand; Wire Size (3) 250 MCM; Capacity 102 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381606639
• SKU Name: app ll77sa
