Overview

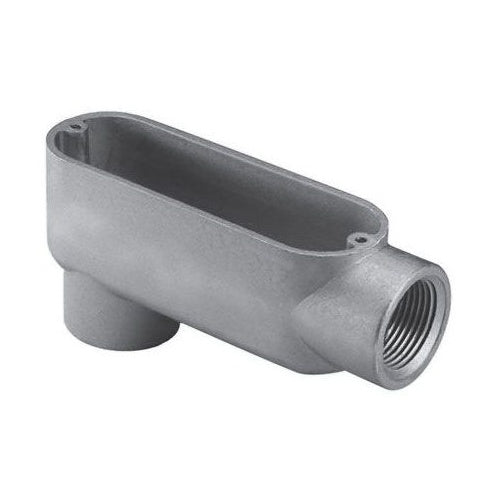

Appleton LR150A 1-1/2" Aluminum LR-Type Conduit Body

Product Specifications

• UPC: 78138148200
• Installation: Threaded
• Material: Epoxy Powder Coated Pressure Cast Copper-Free Aluminum
• Approval: UL 514A, CSA C22.2, NEC
• Used On: IMC/Rigid Conduit
• Additional Information: Enclosure Rating Class I Div 2; Application Pulling Fitting, Conduit System, Splicing, Connect and Change Direction of Conduit Run, Branch Run Connection, Conductor Maintenance, Hazardous Location; Applicable Standard NEMA FB-1
• Catalog Number: LR150A
• Access Opening: 90 Degree Right Side
• Configuration: LR
• Cover Type: Epoxy Powder Coated Malleable Iron/Steel/Copper-Free Aluminum
• Hub Location: 90 Degree
• Number Of Hubs: 2
• Hub Size: 1-1/2 Inch
• Size: 7.88 Inch Length x 3.5 Inch Width
• Catalog Description: FORM 85 UNILETS TYPE LR CONDUIT OUTLET BODY, HUB SIZE: 1-1/2 IN, FORM: 85, LENGTH: 7.88 IN, WIDTH: 3-1/2 IN, MATERIAL: PRESSURE CAST ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED FEMALE THREADED, STANDARD: UL 514A, UL 514B, UL F
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Epoxy Powder Coated Copper-Free Pressure Cast Aluminum (Body), Stainless Steel (Cover Screw) Material; 7.88 Inch Length X 3.50 Inch Width Size; Imc/Rigid Conduit Used on; 1-1/2 Inch Hub Size; Threaded Installation; LR Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 85 Form Type; Right Side Access Opening; UNILETS[R], Form 85[TM] Brand; Wire Size (3) 1 AWG; Capacity 35 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381482004
• SKU Name: app lr150a

Resources

• Manufacturer Spec Sheet
