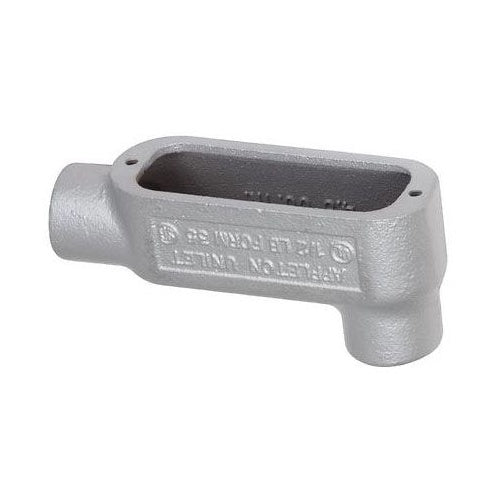

Appleton LR150-M 1-1/2" Malleable LR-Type Conduit Body

Overview

Appleton LR150-M 1-1/2" Malleable LR-Type Conduit Body

Product Specifications

• UPC: 78138148205
• Hub Size: 1-1/2 Inch
• Size: 8.19 Inch Length x 3.5 Inch Width
• Installation: Threaded
• Material: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron (Body), Fiber/Neoprene (Gasket), Stainless Steel (Screw)
• Form Type: Form 35
• Approval: UL 514A/B, CSA C22.2, NEC, CEC
• Used On: IMC/Rigid Conduit
• Additional Information: Application Pulling Fitting, Conduit System, Splicing, Connect and Change Direction of Conduit Run, Branch Run Connection, Conductor Maintenance; Applicable Standard NEMA FB-1
• Catalog Number: LR150-M
• Brand Name: Appleton
• Model: LR
• Access Opening: Right Side
• Configuration: LR
• Cover Type: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron
• Hub Location: 90 Degree
• Number Of Hubs: 2
• Catalog Description: FORM 35 UNILETS TYPE LR CONDUIT OUTLET BODY, HUB SIZE: 1-1/2 IN, FORM: 35, LENGTH: 8.19 IN, WIDTH: 3-1/2 IN, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), CONNECTION: TAPERED FEMALE THR
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Stainless Steel (Cover Screw) Material; 8.19 Inch Length X 3.5 Inch Width Size; Imc/Rigid Conduit Used on; 1-1/2 Inch Hub Size; Threaded Installation; LR Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 35 Form Type; Right Side Access Opening; Form 35[TM] Brand; Wire Size (3) 1/0 AWG; Capacity 35.3 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381482059
• SKU Name: app lr150m

Resources

• Manufacturer Spec Sheet
