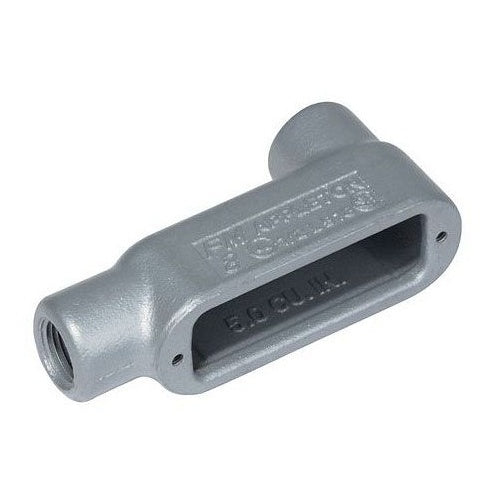

Appleton LR28 3/4" Conduit Body

Overview

Appleton LR28 3/4" Conduit Body

Product Specifications

• UPC: 78138174423
• Enclosure: Class I Div 2
• Material: Grayloy Iron (Body), Stainless Steel (Screw), Neoprene (Gasket)
• Finish: Zinc Electroplated Chromate Epoxy Powder Coated (Body)
• Size: 5.75 Inch Length x 2.5 Inch Width
• Approval: UL 514A/B, CSA C22.2
• Additional Information: Form Type Form 8; Installation Threaded; Used On Rigid/IMC Conduit; Application Commercial, Industrial, Hazardous Location; Applicable Standard NEC, CEC, NEMA FB-1
• Catalog Number: LR28
• Brand Name: FM8[TM]
• Configuration: LR
• Hub Size: 3/4 Inch
• Number Of Hubs: 2
• Hub Location: 90 Degree
• Access Opening: Right Side
• Capacity: 8 Cubic Inch
• Catalog Description: FM8 GRAYLOY-IRON UNILETS TYPE LR CONDUIT OUTLET BODY, HUB SIZE: 3/4 IN, FORM: 8, LENGTH: 5-3/4 IN, WIDTH: 2-1/2 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONNECTION: TAP
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron (Body), Stainless Steel (Cover Screw) Material; 5.75 Inch Length X 2.5 Inch Width Size; Imc/Rigid Conduit Used on; 3/4 Inch Hub Size; Threaded Installation; LR Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 8 Form Type; Right Side Access Opening; FM8[TM] Brand; Wire Size (3) 6 AWG; Capacity 8 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381744232
• SKU Name: app lr28
