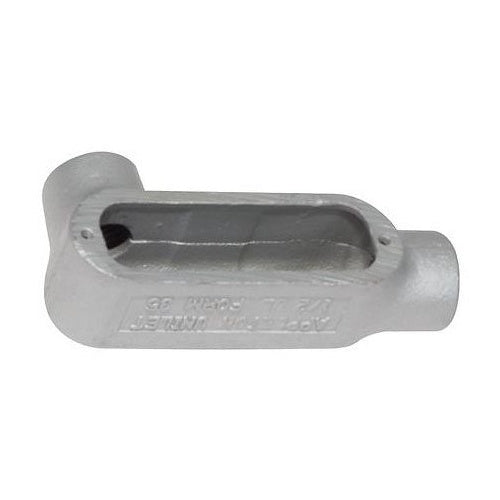

Appleton LR300-M 3" Malleable LR-Type Conduit Body

Overview

Appleton LR300-M 3" Malleable LR-Type Conduit Body

Product Specifications

• UPC: 78138148235
• Enclosure: Class I Div 2
• Material: Malleable Iron (Body), Stainless Steel (Screw)
• Finish: Zinc Electroplated Chromate Epoxy Powder Coated (Body)
• Size: 13.69 Inch Length x 5.75 Inch Width
• Approval: UL 514A/B, CSA C22.2
• Additional Information: Form Type Form 35; Installation Threaded; Used On Rigid/IMC Conduit; Application Commercial, Industrial, Hazardous Location; Applicable Standard NEC, CEC, NEMA FB-1
• Catalog Number: LR300-M
• Brand Name: Form 35[TM]
• Configuration: LR
• Hub Size: 3 Inch
• Number Of Hubs: 2
• Hub Location: 90 Degree
• Access Opening: Right Side
• Capacity: 175 Cubic Inch
• Catalog Description: FORM 35 UNILETS TYPE LR CONDUIT OUTLET BODY, HUB SIZE: 3 IN, FORM: 35, LENGTH: 13.69 IN, WIDTH: 5-3/4 IN, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), CONNECTION: TAPERED FEMALE THREAD
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Stainless Steel (Cover Screw) Material; 13.69 Inch Length X 5.75 Inch Width Size; Imc/Rigid Conduit Used on; 3 Inch Hub Size; Threaded Installation; LR Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 35 Form Type; Right Side Access Opening; Form 35[TM] Brand; Wire Size (3) 350 MCM; Capacity 175 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381482356
• SKU Name: app lr300m
