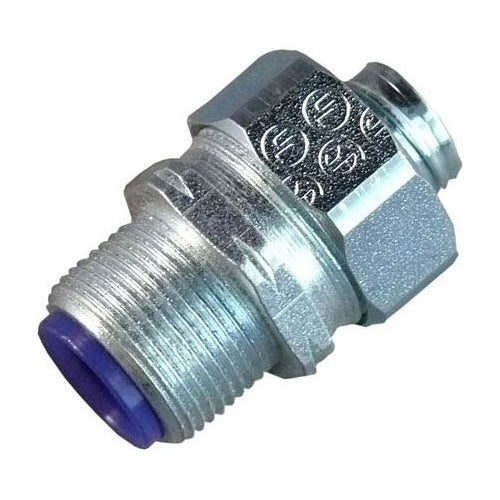

Appleton PG3813-STB 3/8 Straight Liquidtight Connector

Overview

Appleton PG3813-STB 3/8 Straight Liquidtight Connector

Product Specifications

• UPC: 78138144101
• Additional Information: Size 1.13 Inch Dia; Thread Size 13.5 MM; Insulator Color Blue
• Catalog Number: PG3813-STB
• Model: PG
• Type: Straight
• Throat Type: Nylon Insulated
• Trade Size: 3/8 Inch
• Material: Zinc Electroplated Steel Body/Ferrule
• Approval: UL 514B, CSA C22.2
• Used On: Flexible Metallic Liquidtight Conduit
• Catalog Description: PG METRIC THREAD STRAIGHT LIQUIDTIGHT CONNECTOR, SIZE: 3/8 IN, CONNECTION: PG13.5 THREADED X COMPRESSION, MATERIAL: STEEL, FINISH: ZINC ELECTROPLATE, INSULATION: BLUE NYLON INSULATOR, DIMENSIONS: 1.44 IN LENGTH X 1.13 IN HEIGHT, THREAD LENGTH: 0.63 IN, STANDARD: UL 514B, E14814, CSA C22.2 NO. 18.3, 65178, GERMAN INDUSTRY STANDARD DIN 40430, FOR LIQUIDTIGHT FLEXIBLE METAL CONDUIT
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Metric Thread, Straight Type; Zinc Electroplated Steel (Body), Steel (Ferrule), Blue Nylon (Insulator) Material; Liquid Tight Flexible Metal Conduit Used on; UL 514B, CSA C22.2 Approval; 3/8 Inch Trade Size; Insulated Throat Type; Thread Size 13.5 Millimeter; Application Commercial/Industrial, Wet Location; Applicable Standard Nec/Cec; PG-STB Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 781381441018
• SKU Name: app pg3813stb

Resources

• Manufacturer Spec Sheet
