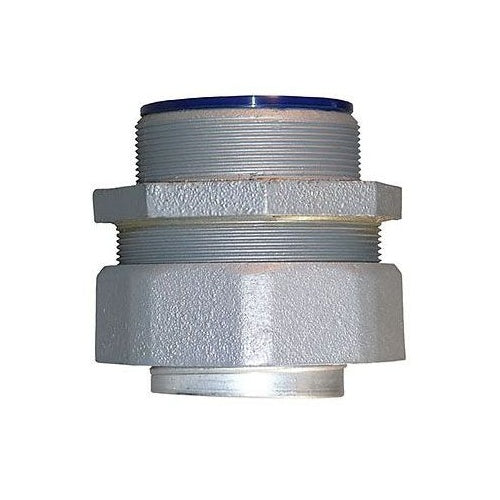

Appleton PG50-STB 1/2" Straight Liquidtight Connector

Product Specifications

• UPC: 78138130444
• Additional Information: Size 1.25 Inch Dia; Thread Size 16 MM; Insulator Color Blue
• Catalog Number: PG50-STB
• Model: PG
• Type: Straight
• Throat Type: Nylon Insulated
• Trade Size: 1/2 Inch
• Material: Zinc Electroplated Steel Body/Ferrule
• Approval: UL 514B, CSA C22.2
• Used On: Flexible Metallic Liquidtight Conduit
• Catalog Description: PG METRIC THREAD STRAIGHT LIQUIDTIGHT CONNECTOR, SIZE: 1/2 IN, CONNECTION: PG16 THREADED X COMPRESSION, MATERIAL: STEEL, FINISH: ZINC ELECTROPLATE, INSULATION: BLUE NYLON INSULATOR, DIMENSIONS: 1.44 IN LENGTH X 1-1/4 IN HEIGHT, THREAD LENGTH: 0.63 IN, STANDARD: UL 514B, E14814, CSA C22.2 NO. 18.3, 65178, GERMAN INDUSTRY STANDARD DIN 40430, FOR LIQUIDTIGHT FLEXIBLE METAL CONDUIT
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Metric Thread, Straight Type; Zinc Electroplated Steel (Body), Steel (Ferrule), Blue Nylon (Insulator) Material; Liquid Tight Flexible Metal Conduit Used on; UL 514B, CSA C22.2 Approval; 1/2 Inch Trade Size; Insulated Throat Type; Thread Size 16 Millimeter; Application Commercial/Industrial, Wet Location; Applicable Standard Nec/Cec; PG-STB Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 781381304443
• SKU Name: app pg50stb

Resources

• Manufacturer Spec Sheet
