Overview

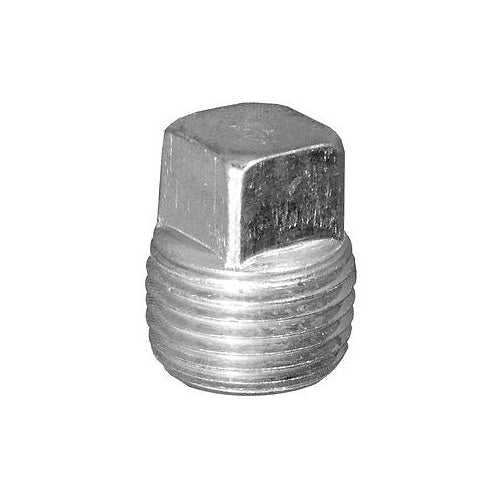

Appleton PLG-300S 3" Square Head Plug

Product Specifications

• UPC: 78138165260
• Enclosure: Class I Group B C D, Class II Group E F G, Class III
• Used On: Threaded Metal Conduit
• Approval: UL
• Additional Information: Applicable Standard NEC 501-4A/501-4B
• Catalog Number: PLG-300S
• Brand Name: Unilet[R]
• Model: PLG
• Type: Threaded
• Head Style: Square
• Trade Size: 3 Inch
• Material: ASTM A47-77 32510 Malleable Iron
• Finish: Zinc Electroplated Dichromate Epoxy Powder Coated
• Catalog Description: UNILETS SQUARE HEAD CLOSE-UP PLUG, SIZE: 3 IN, MATERIAL: MALLEABLE IRON, FINISH: ZINC ELECTROPLATE, CONNECTION: TAPERED MNPT, STANDARD: UL 886 (1203), UL FILE NUMBER E10444, CSA C22.2 NO. 25 AND 30, CSA 065181, UL LISTED FOR CLASS I, GRO
• Category: Bar Hangers & Outlet Box Accy
• Full Technical Description: Threaded Type; Malleable Iron Material; Mechanically Galvanized Finish; Imc/Threaded Rigid Metal Conduit Used on; UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 3 Inch Trade Size; Square Head Style; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Used on Imc/Rigid Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; PLG Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Closure Plug
• Unspsc: 39121311
• UPC 12 Digit: 781381652605
• SKU Name: app plg300s

Resources

• Manufacturer Spec Sheet
