Overview

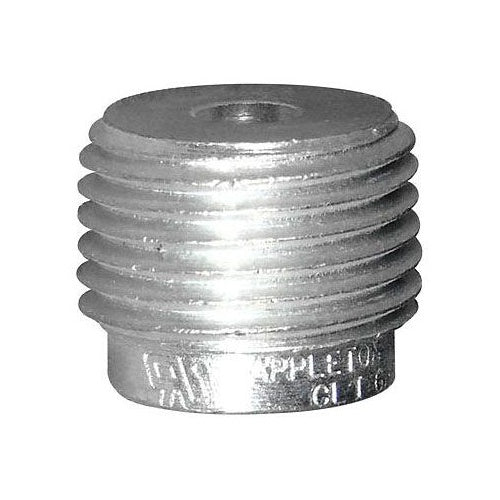

Appleton RB150125A 1-1/2X1-1/4 Reducing Bushing

Product Specifications

• UPC: 78138165500
• Catalog Number: RB150125A
• Type: Threaded
• Large End Trade Size: 1-1/2 Inch
• Small End Trade Size: 1-1/4 Inch
• Material: Natural Copper Free Aluminum
• Approval: UL 886/E34997, CSA C22.2/065181, NEC/CEC
• Used On: Rigid Conduit, IMC Conduit
• Additional Information: End Connection Female Threaded x Male Threaded; Applicable Standard UL, CSA, NEC/CEC Compliance
• Catalog Description: REDUCING BUSHING, SIZE: 1-1/2 X 1-1/4 IN, MATERIAL: ALUMINUM, FINISH: NATURAL, CONNECTION: NPT, STANDARD: CLASS I: GROUPS A, B, C, D, CLASS II: GROUPS E, F, G, CLASS III, UL 886 (1203), UL E10444, CSA C22.2 NO. 25, C22.2 NO. 30, CSA 065
• Category: Rigid Conduit Fittings - Aluminum
• Full Technical Description: Taper Threaded Type; Natural Aluminum Material; 1-1/4 Inch Small End Trade Size; 1-1/2 Inch Large End Trade Size; UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class I Zone 1 and 2 Group Iia Iib Iic, Class III Enclosure; Constructional Feature Explosionproof/Dust Ignitionproof; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; RB Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Reducer Bushing
• Unspsc: 39121312
• UPC 12 Digit: 781381655002
• SKU Name: app rb150125a
