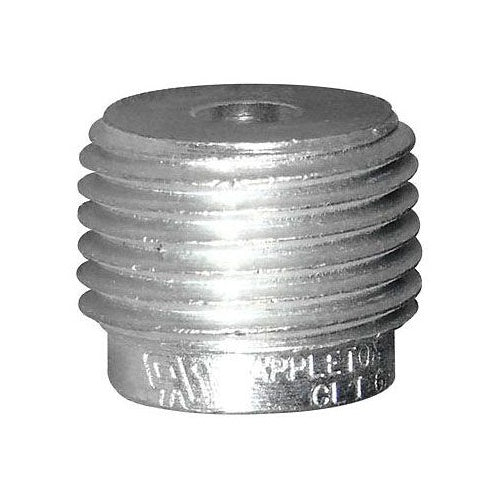

Appleton RB150-50A 1-1/2X1/2 Aluminum Reducing Bushing

Overview

Appleton RB150-50A 1-1/2X1/2 Aluminum Reducing Bushing

Product Specifications

• UPC: 78138132111
• Approval: UL 1203, CSA C22.2
• Additional Information: Constructional Feature Explosionproof, Dust Ignitionproof; Application Hazardous Location; Used On Rigid/IMC Conduit
• Catalog Number: RB150-50A
• Brand Name: Appleton
• Model: RB
• Type: Threaded
• Large End Trade Size: 1-1/2 Inch
• Small End Trade Size: 1/2 Inch
• Enclosure: Class I Group A B C D, Class II Group E F G, Class III
• Material: Natural Aluminum
• Catalog Description: REDUCING BUSHING, SIZE: 1-1/2 X 1/2 IN, MATERIAL: ALUMINUM, FINISH: NATURAL, CONNECTION: NPT, STANDARD: CLASS I: GROUPS A, B, C, D, CLASS II: GROUPS E, F, G, CLASS III, UL 886 (1203), UL E10444, CSA C22.2 NO. 25, C22.2 NO. 30, CSA 06518
• Category: Rigid Conduit Fittings - Aluminum
• Full Technical Description: Taper Threaded Type; Natural Aluminum Material; 1/2 Inch Small End Trade Size; 1-1/2 Inch Large End Trade Size; UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class I Zone 1 and 2 Group Iia Iib Iic, Class III Enclosure; Constructional Feature Explosionproof/Dust Ignitionproof; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; RB Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Reducer Bushing
• Unspsc: 39121312
• UPC 12 Digit: 781381321112
• SKU Name: app rb15050a
