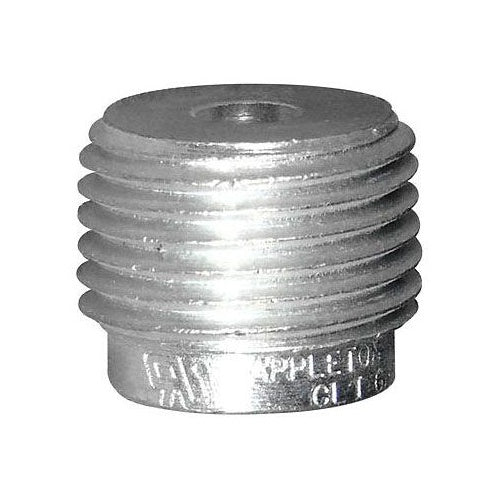

Appleton RB300-125A 3-1-1/4 Reducing Bushing

Overview

Appleton RB300-125A 3-1-1/4 Reducing Bushing

Product Specifications

• UPC: 78138173654
• Additional Information: Finish Natural; Used On Rigid Conduit/IMC
• Catalog Number: RB300-125A
• Model: RB
• Type: Threaded
• Large End Trade Size: 3 Inch
• Small End Trade Size: 1-1/4 Inch
• Enclosure: Class I Group A B C D, Class II Group E F G, Class III
• Material: Aluminum
• Approval: UL 886, CSA C22.2
• Catalog Description: CONDUIT REDUCER BUSHING, TYPE THREADED, LARGE END TRADE SIZE 3 INCH, SMALL END TRADE SIZE 1-1/4 INCH, ENCLOSURE CLASS I GROUP A B C D, CLASS II GROUP E F G, CLASS III, MATERIAL ALUMINUM, APPROVAL UL 886, CSA C22.2, FINISH NATURAL, USED ON RIGID CONDUIT/IMC
• Category: Rigid Conduit Fittings - Aluminum
• Full Technical Description: Taper Threaded Type; Natural Aluminum Material; 1-1/4 Inch Small End Trade Size; 3 Inch Large End Trade Size; UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class I Zone 1 and 2 Group Iia Iib + H2, Class III Enclosure; Constructional Feature Explosionproof/Dust Ignitionproof; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; RB Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Reducer Bushing
• Unspsc: 39121312
• UPC 12 Digit: 781381736541
• SKU Name: app rb300125a
