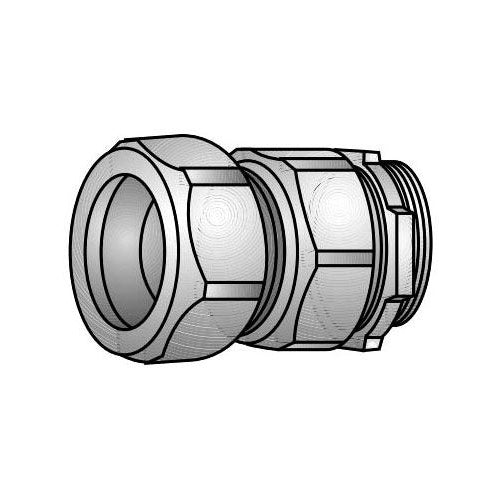

Appleton RNTC-50 1/2" No-Thread Conduit Connector

Overview

Appleton RNTC-50 1/2" No-Thread Conduit Connector

Product Specifications

• UPC: 78138166190
• Material: Steel
• Constructional Feature: Concrete-Tight
• Approval: UL 514B, CSA C22.2
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard NEMA FB-1
• Catalog Number: RNTC-50
• Model: RNTC
• Type: Compression, Threadless
• Throat Type: Insulated
• Trade Size: 1/2 Inch
• Diameter: 1.31 Inch
• Length: 1.26 Inch
• Thread Length: 0.38 Inch
• Catalog Description: FEATURES: INSULATED, TRADE SIZE: 0.5IN, OUTSIDE DIAMETER 1.3125 IN, MATERIAL: STEEL
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Compression, Threadless Type; Zinc Electroplated Malleable Iron Material; 1.19 Inch; Imc/Rigid Metal Conduit Used on; 0.44 Inch Thread Length; UL 514B, CSA C22.2 Approval; 1.38 Inch Diameter; 1/2 Inch Trade Size; Concrete Tight; Insulated Throat Type; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Rigid/EMT Conduit Connector
• Unspsc: 39121311
• UPC 12 Digit: 781381661904
• SKU Name: app rntc50
