Overview

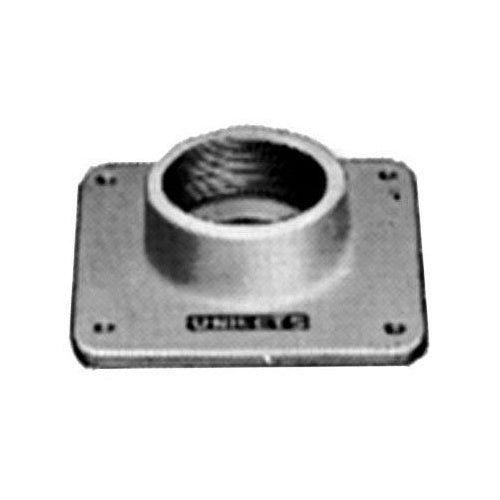

Appleton RSSK-100 1" Conduit Hub Cover

Product Specifications

• UPC: 78138166360
• Hub Size: 1 INCH
• Used On: RSM-1/RSS-1 JUNCTION BOX
• Approval: UL 50
• Additional Information: APPLICABLE STANDARD FEDERAL SPECIFICATION WC-586B
• Catalog Number: RSSK-100
• Brand Name: UNILETS.
• Model: RS
• Height: 4 INCH
• Width: 4-1/2 INCH
• Material: ASTM A47-77 32510 MALLEABLE IRON
• Finish: ZINC ELECTROPLATED, DICHROMATE, EPOXY POWDER COATED
• Number Of Hubs: 1
• Catalog Description: CONDUIT HUB PLATE, TYPE THREADED HUB, HEIGHT 4 INCH, WIDTH 4-1/2 INCH, MATERIAL MALLEABLE IRON, FINISH ZINC ELECTROPLATED, CHROMATE, EPOXY POWDER COATED, NUMBER OF HUBS 1, HUB SIZE 1 INCH, USED ON RSM/RSS JUNCTION BOX, APPROVAL UL 50/50E, APPLICATION PROVIDE ACCESS TO CONDUCTORS FOR MAINTENANCE
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Tapered Threaded Type; Malleable Iron Material; Zinc Electroplated/Chromate/Epoxy Powder Coated Finish; 4-1/2 Inch; 4 Inch; Imc/Rigid Conduit Junction Box Used on; 1 Inch Hub Size; 1 Hub(S); UL 50/50E, CSA C22.2 Approval; UNILETS[R] Brand; Excludes Gasket, Screw; Applicable Standard Nec/Cec; RS Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Enclosure Hub Plate
• Unspsc: 39121308
• UPC 12 Digit: 781381663601
• SKU Name: app rssk100

Resources

• Manufacturer Spec Sheet
