Appleton SPLSBLB Blue Jewel Pilot Light

Overview

Appleton SPLSBLB Blue Jewel Pilot Light

Product Specifications

• UPC: 78138176570
• Additional Information: WITH COPPER FREE ALUMINUM GUARD, STEEL CLAMP RING, TEMPERED BLUE GLASS JEWEL
• Catalog Number: SPLSBLB
• Model: SPLS
• Type: PIGTAIL
• Constructional Feature: EXPLOSION PROOF
• Lamp Type: 120 V 6 W INCANDESCENT
• Lens Style/Size: ROUND
• Enclosure Material: NATURAL HIGH STRENGTH COPPER FREE ALUMINUM ALLOY
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/7/9
• Catalog Description: INCANDESCENT PILOT LIGHT, TYPE PIGTAIL, CONSTRUCTIONAL FEATURE EXPLOSION PROOF, LAMP INPUT TYPE 120 VAC INCANDESCENT, LAMP TYPE 6 W INCANDESCENT, ENCLOSURE MATERIAL COPPER FREE ALUMINUM ALLOY, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/7/9, APPLICATION HAZARDOUS LOCATION, INCLUDES TEMPERED BLUE GLASS JEWEL
• Category: Pilot Light Complete Assemblies

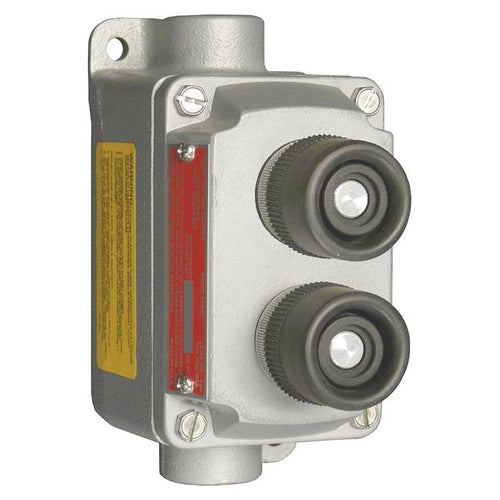

• Full Technical Description: Pigtail, Short Stem Type; Natural Copper-Free Aluminum Enclosure Material; UL 508/698/1203 Approval; Hazardous Location, Remote Control of Motor Application; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class II, NEMA 3/7CD/9EFG Enclosure; 6 Watt Incandescent Lamp Type; Explosionproof, Dust Ignitionproof; 120 Volt AC 50/60 Hertz Lamp Input Type; Blue Lens Color; Temperature Rating 302 Deg F; Lamp Base Type 6S6; Includes Copper-Free Aluminum Guard, Steel Clamp Ring, Tempered Glass Jewel; Used on Efd/Efdb and Eds Control Station; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Indicating Light
• Unspsc: 39121534
• UPC 12 Digit: 781381765701
• SKU Name: app splsblb
