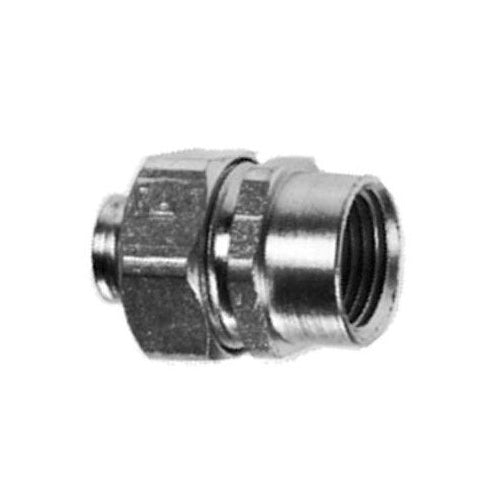

Appleton ST-100F 1" Liquidtight Hub

Product Specifications

• UPC: 78138167950
• Catalog Number: ST-100F
• Model: ST
• Type: Straight Female
• Trade Size: 1 Inch
• Material: Zinc Electroplated Steel Body/Ferrule
• Approval: UL 514B, CSA C22.2
• Used On: Flexible Metallic Liquidtight Conduit
• Additional Information: Size 1.81 Inch Dia
• Catalog Description: ST SERIES FEMALE LIQUIDTIGHT CONNECTOR WITH THREADED HUB, SIZE: 1 IN, CONNECTION: THREADED X COMPRESSION, MATERIAL: STEEL, FINISH: ZINC ELECTROPLATE, DIMENSIONS: 1.56 IN LENGTH X 1.81 IN HEIGHT, THREAD LENGTH: 0.69 IN, STANDARD: CLASS I,
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Female, Straight Type; Zinc Electroplated Steel (Body), Steel (Ferrule) Material; Liquid Tight Flexible Metal Conduit Used on; UL 514B, CSA C22.2 Approval; 1 Inch Trade Size; Enclosure Rating Class I Div 2, Class I Zone 2, Class II Div 1 and 2, Class III Div 1 and 2; Includes Threaded Hub; Application Heavy Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1; ST-F Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 781381679503
• SKU Name: app st100f
