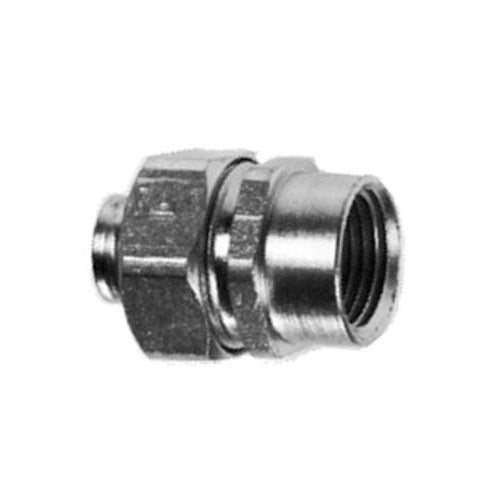

Appleton ST-400F 4" Liquidtight Female Flex Connector

Overview

Appleton ST-400F 4" Liquidtight Female Flex Connector

Product Specifications

• UPC: 78138146337
• Catalog Number: ST-400F
• Model: ST
• Type: Straight Female
• Trade Size: 4 Inch
• Material: Zinc Electroplated Chromate/Epoxy Powder Coated Malleable Iron Body, Aluminum Ferrule
• Approval: UL 514B, CSA C22.2
• Used On: Flexible Metallic Liquidtight Conduit
• Additional Information: Size 5.5 Inch Dia
• Catalog Description: LIQUIDTIGHT FLEXIBLE CONDUIT CONNECTOR, TYPE STRAIGHT FEMALE, THROAT TYPE NON-INSULATED, TRADE SIZE 4 INCH, MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED MALLEABLE IRON BODY, ALUMINUM FERRULE, STANDARD PACKAGE 5, APPROVAL UL 514B, CSA C22.2, USED ON LIQUIDTIGHT FLEXIBLE METAL CONDUIT, SIZE 5.5 INCH DIA, ENCLOSURE TYPE CLASS I, DIV 2
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Female, Straight Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Aluminum (Ferrule) Material; Liquid Tight Flexible Metal Conduit Used on; UL 514B, CSA C22.2 Approval; 4 Inch Trade Size; Enclosure Rating Class I Div 2, Class I Zone 2, Class II Div 1 and 2, Class III Div 1 and 2; Includes Threaded Hub; Application Heavy Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1; ST-F Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 781381463379
• SKU Name: app st400f

Resources

• Manufacturer Spec Sheet
