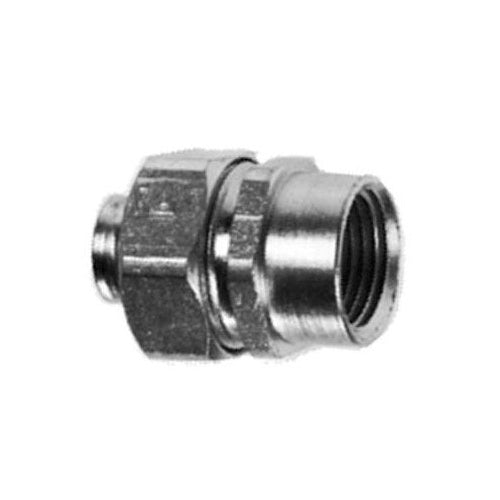

Appleton ST-75F 3/4" Liquidtight Hub

Product Specifications

• UPC: 78138167935
• Additional Information: Enclosure Type Class I Div 2; Application Commercial and Industrial; Applicable Standard NEC/CEC, NEMA FB-1
• Catalog Number: ST-75F
• Model: ST
• Type: Straight, Female
• Throat Type: Non-Insulated
• Trade Size: 3/4 Inch
• Material: Zinc Electroplated Steel
• Approval: UL, CSA
• Used On: Liquid Tight Flexible Metallic Conduit
• Catalog Description: ST SERIES FEMALE LIQUIDTIGHT CONNECTOR WITH THREADED HUB, SIZE: 3/4 IN, CONNECTION: THREADED X COMPRESSION, MATERIAL: STEEL, FINISH: ZINC ELECTROPLATE, DIMENSIONS: 1.44 IN LENGTH X 1.5 IN HEIGHT, THREAD LENGTH: 0.5 IN, STANDARD: CLASS I, D
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Female, Straight Type; Zinc Electroplated Steel (Body), Steel (Ferrule) Material; Liquid Tight Flexible Metal Conduit Used on; UL 514B, CSA C22.2 Approval; 3/4 Inch Trade Size; Enclosure Rating Class I Div 2, Class I Zone 2, Class II Div 1 and 2, Class III Div 1 and 2; Includes Threaded Hub; Application Heavy Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1; ST-F Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 781381679350
• SKU Name: app st75f
