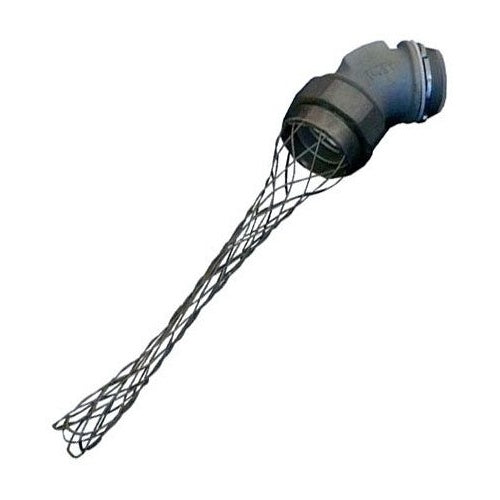

Appleton STB-45125SR 1-1/4" 45D Insulated Liquidtight Connector

Overview

Appleton STB-45125SR 1-1/4" 45D Insulated Liquidtight Connector

Product Specifications

• UPC: 78138151381
• Standard Package: 10
• Approval: UL 514-B, CSA C22.2
• Used On: FLEXIBLE METALLIC CONDUIT
• Additional Information: APPLICABLE STANDARD NEC 501-4(B), NEC 502-4(A)(2), NEC 503-3(A)
• Catalog Number: STB-45125SR
• Brand Name: Appleton[R]
• Model: STB
• Trade Size: 1-1/4 INCH
• Connector Type: 45 DEG MALE
• Connector Material: ZINC ELECTROPLATED DICHROMATE ALUMINUM POLYMER ENAMELED MALLEABLE IRON
• Throat Type: INSULATED
• Mesh Material: STAINLESS STEEL
• Catalog Description: LIQUIDTIGHT FLEXIBLE CONDUIT CONNECTOR AND WIRE MESH, TRADE SIZE 1-1/4 INCH, CONNECTOR TYPE 45 DEG, CONNECTOR MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED MALLEABLE IRON, THROAT TYPE INSULATED, MESH MATERIAL STAINLESS STEEL, STANDARD PACKAGE 10, APPROVAL UL 514B, CSA C22.2, USED ON LIQUIDTIGHT FLEXIBLE METAL CONDUIT, APPLICABLE STANDARD NEMA FB-1, APPLICATION COMMERCIAL, SIZE 1.81 INCH DIA, THREAD LENGTH 2.31 INCH
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Liquid Tight Flexible Metal Conduit Used on; UL 514B, CSA C22.2 Approval; 45 Degree Connector Type; 1-1/4 Inch Trade Size; Insulated Throat Type; Stainless Steel Mesh Material; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Connector Material; Outside Diameter 1.63 to 1.66 Inch; Enclosure Rating Class I Div 2, Class I Zone 2, Class II Div 1 and 2, Class III Div 1 and 2; Application Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1; STB-SR Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Liquidtight Flexible Conduit Connector with Grip
• Unspsc: 39121420
• UPC 12 Digit: 781381513814
• SKU Name: app stb45125sr
