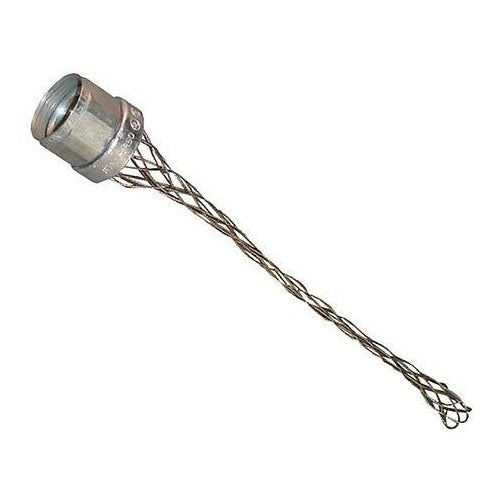

Appleton STN-100SR 1" Straight Insulated Liquidtight Connector

Product Specifications

• UPC: 78138150159
• Used On: Liquidtight Flexible Metal Conduit
• Additional Information: Applicable Standard NEMA FB-1; Connector Size 1.81 Inch Dia x 1.75 Inch L; Application Commercial
• Catalog Number: STN-100SR
• Model: STN
• Trade Size: 1 Inch
• Connector Type: Straight
• Connector Material: Zinc Electroplated Steel
• Throat Type: Insulated
• Mesh Material: Stainless Steel
• Approval: UL 514B, CSA C22.2
• Catalog Description: LIQUIDTIGHT FLEXIBLE CONDUIT CONNECTOR AND WIRE MESH, TRADE SIZE 1 INCH, CONNECTOR TYPE STRAIGHT, CONNECTOR MATERIAL ZINC ELECTROPLATED STEEL, THROAT TYPE INSULATED, MESH MATERIAL STAINLESS STEEL, STANDARD PACKAGE 20, APPROVAL UL 514B, CSA C22.2, USED ON LIQUIDTIGHT FLEXIBLE METAL CONDUIT, APPLICABLE STANDARD NEMA FB-1, APPLICATION COMMERCIAL, SIZE 1.81 INCH DIA
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Liquid Tight Flexible Metal Conduit Used on; UL 514B, CSA C22.2 Approval; Straight Connector Type; 1 Inch Trade Size; Insulated Throat Type; Stainless Steel Mesh Material; Zinc Electroplated Steel Connector Material; Outside Diameter 1.29 to 1.32 Inch; Enclosure Rating Class I Div 2, Class I Zone 2, Class II Div 1 and 2, Class III Div 1 and 2; Application Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1; STN-SR Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Liquidtight Flexible Conduit Connector with Grip
• Unspsc: 39121420
• UPC 12 Digit: 781381501590
• SKU Name: app stn100sr
