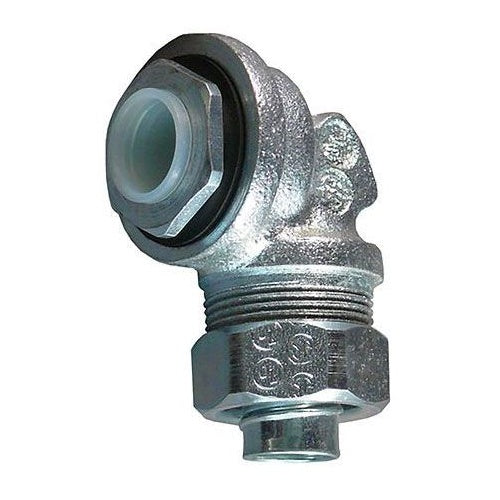

Appleton STN-9038 3/8 90D Insulated Liquidtight Connector

Overview

Appleton STN-9038 3/8 90D Insulated Liquidtight Connector

Product Specifications

• UPC: 78138125759
• Approval: UL 514-B, CSA C22.2
• Used On: FLEXIBLE METALLIC LIQUID TIGHT CONDUIT
• Additional Information: APPLICATION BEVERAGE PLANT, CHEMICAL PLANT, DAIRY, FOOD PROCESSOR, GANTRY CRANE, HAZARDOUS LOCATION, MACHINE SHOP, PETROLEUM MACHINERY, PLASTIC FABRICATOR; ENVIRONMENTAL CONDITIONS DIRT, DUST, FUME, OIL TIGHT, RAIN TIGHT, WET LOCATION
• Catalog Number: STN-9038
• Brand Name: Appleton[R]
• Model: STN
• Type: 90 DEG
• Throat Type: INSULATED
• Trade Size: 3/8 INCH
• Material: ZINC ELECTROPLATED DICHROMATE ALUMINUM POLYMER ENAMELED MALLEABLE IRON BODY, STEEL FERRULE
• Standard Package: 50
• Catalog Description: LIQUIDTIGHT FLEXIBLE CONDUIT CONNECTOR, TYPE 90 DEG, THROAT TYPE INSULATED, TRADE SIZE 3/8 INCH, MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED MALLEABLE IRON, STANDARD PACKAGE 50, APPROVAL UL 514B, CSA C22.2, USED ON LIQUIDTIGHT FLEXIBLE METAL CONDUIT, ENCLOSURE TYPE CLASS I DIV 2, APPLICATION LIQUIDTIGHT/RAINTIGHT/OILTIGHT, WET LOCATION
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 3-Piece, 90 Degree Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Aluminum (Ferrule) Material; Liquid Tight Flexible Metal Conduit Used on; UL 514B, CSA C22.2 Approval; 3/8 Inch Trade Size; Insulated Throat Type; Enclosure Rating Class I Div 2, Class I Zone 2, Class II Div 1 and 2, Class III Div 1 and 2; Application Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1; STN Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 781381257596
• SKU Name: app stn9038

Resources

• Manufacturer Spec Sheet
